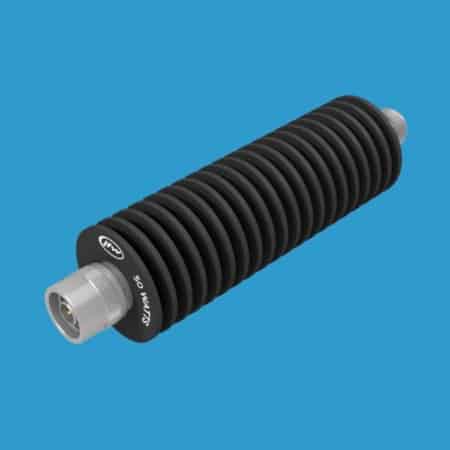

50 Watt Fixed Attenuator | 50 Ohm | N male/female
50 Watt Fixed Attenuator | 50 Ohm | N male/female

50 Watt Fixed Attenuator DC-6 GHz | 50HFFT-XXX-50/6

JFW Model #: 50HFFT-XXX-50/6
Description:  Fixed attenuator with 1.61″ diameter
Impedance: 50 Ohm
Frequency Range: DC-6 GHz
RF Input Power: 50 Watt uni-directional
Attenuation Values: 1-50 dB
Heatsink Style: Round
RF Connectors: N or SMA
Documentation:  Data Sheet | Drawing (N)

Clear
Categories: 50 Ohm Fixed Attenuators (5 to 50 Watts), Fixed Attenuators
  • Description
  • Additional information

Description

Model 50HFFT-xxx-50/6 is a 50 Watt fixed attenuator with a narrow diameter (1.61″ diameter) and a long heatsink (4.76″ length).  It is a 50 Ohm fixed attenuator that operates DC-6 GHz.  It is available with either N or SMA connectors.

For model 50HFFT-xxx-50/6, replace the XXX with the desired attenuation value and add the RF connector type at the end to create the full model number.

Example Model Numbers:

50HFFT-003-50/6SMA (3dB with SMA male/female)
50HFFT-006-50/6SMA (6dB with SMA male/female)
50HFFT-010-50/6SMA (10dB with SMA male/female)
50HFFT-020-50/6SMA (20dB with SMA male/female)
50HFFT-030-50/6SMA (3dB with SMA male/female)

50HFFT-003-50/6SMA F/F (3dB with SMA female/female)
50HFFT-006-50/6SMA F/F (6dB with SMA female/female)
50HFFT-010-50/6SMA F/F (10dB with SMA female/female)
50HFFT-020-50/6SMA F/F (20dB with SMA female/female)
50HFFT-030-50/6SMA F/F (3dB with SMA female/female)

50HFFT-003-50/6N (3dB with N male/female)
50HFFT-006-50/6N (6dB with N male/female)
50HFFT-010-50/6N (10dB with N male/female)
50HFFT-020-50/6N (20dB with N male/female)
50HFFT-030-50/6N (3dB with N male/female)

50HFFT-003-50/6N F/F (3dB with N female/female)
50HFFT-006-50/6N F/F (6dB with N female/female)
50HFFT-010-50/6N F/F (10dB with N female/female)
50HFFT-020-50/6N F/F (20dB with N female/female)
50HFFT-030-50/6N F/F (3dB with N female/female)

Additional information

Attenuation Value

3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50

Connector Type

N Female/Female, N Male/Female, SMA Female/Female, SMA Male/Female
