You are here: Home1 / Shop2 / Fixed Attenuators3 / 50 Ohm Fixed Attenuators (5 to 50 Watts)4 / 10 Watt Fixed Attenuator DC-6GHz | 50FHC-XXX-10-6

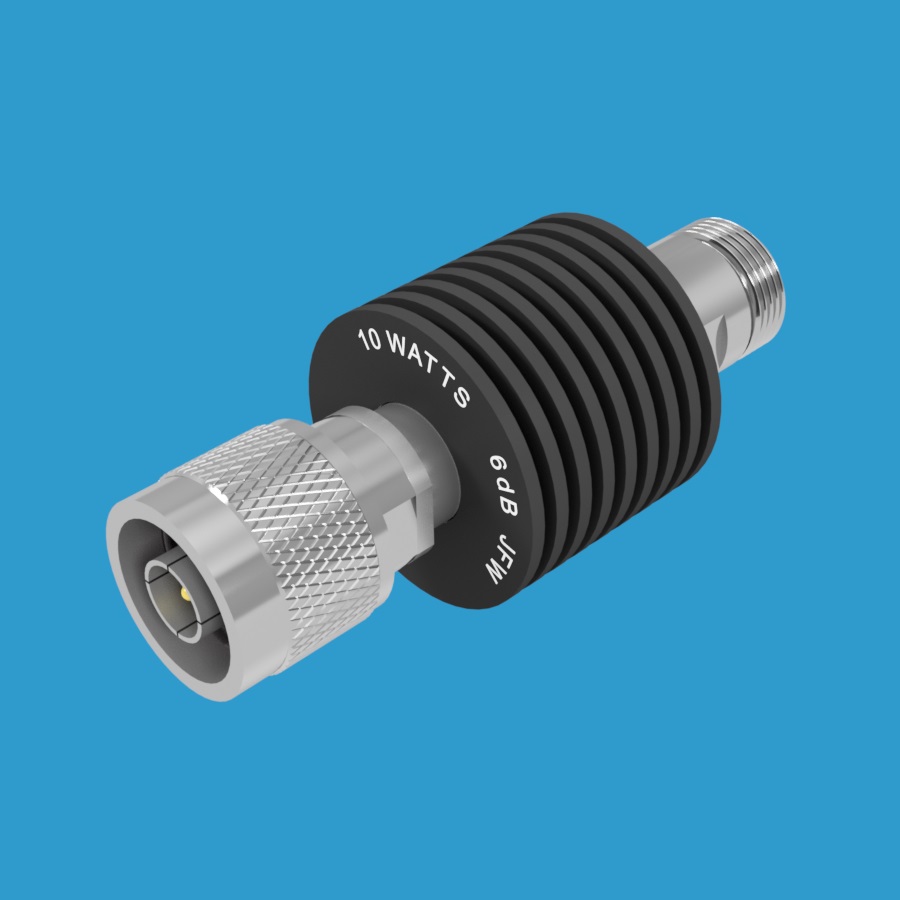

JFW model 50FHC-XXX-10-6 fixed attenuator 10 Watt with 50 Ohm N male/female

10 Watt Fixed Attenuator DC-6GHz | 50FHC-XXX-10-6

JFW Model #: 50FHC-XXX-10-6
Impedance: 50 Ohm
Frequency Range: DC-6 GHz
RF Input Power: 10 Watts
Attenuation Values: 1-50 dB
Heatsink Style: Round
RF Connectors: 4.1/9.5, 4.3/10, N, SMA, TNC, Other
Documentation: Data Sheet | Drawing

If Connector Type is Other, please specify in REMARKS field of the Request a Quote form.

Clear
Categories: 50 Ohm Fixed Attenuators (5 to 50 Watts), Fixed Attenuators
  • Description
  • Additional information

Description

This attenuator model is a 50 Ohm coaxial fixed attenuator with a round heatsink. It is rated at 10 Watts average RF input power and operates DC-6000 MHz. It is available with attenuation values from 1dB to 50dB in any 1dB increment. This attenuator model can be manufactured with custom dB values upon request (i.e. 3.5dB).

For model 50FHC-XXX-10-6, replace the XXX with the desired attenuation value and add the RF connector type at the end to create the full model number.

Example Model Numbers:

50FHC-001-10-6 N   (1dB with N male/female)
50FHC-002-10-6 N   (2dB with N male/female)
50FHC-003-10-6 N   (3dB with N male/female)
50FHC-004-10-6 N   (4dB with N male/female)
50FHC-005-10-6 N   (5dB with N male/female)
50FHC-006-10-6 N   (6dB with N male/female)
50FHC-007-10-6 N   (7dB with N male/female)
50FHC-008-10-6 N   (8dB with N male/female)

50FHC-009-10-6 SMA   (9dB with SMA male/female)
50FHC-010-10-6 SMA   (10dB with SMA male/female)
50FHC-011-10-6 SMA   (11dB with SMA male/female)
50FHC-012-10-6 SMA   (12dB with SMA male/female)
50FHC-013-10-6 SMA   (13dB with SMA male/female)
50FHC-014-10-6 SMA   (14dB with SMA male/female)
50FHC-015-10-6 SMA   (15dB with SMA male/female)
50FHC-016-10-6 SMA   (16dB with SMA male/female)

50FHC-017-10-6 TNC   (17dB with TNC male/female)
50FHC-018-10-6 TNC   (18dB with TNC male/female)
50FHC-019-10-6 TNC   (19dB with TNC male/female)
50FHC-020-10-6 TNC   (20dB with TNC male/female)
50FHC-021-10-6 TNC   (21dB with TNC male/female)
50FHC-022-10-6 TNC   (22dB with TNC male/female)
50FHC-023-10-6 TNC   (23dB with TNC male/female)
50FHC-024-10-6 TNC   (24dB with TNC male/female)

50FHC-025-10-6 4.3-10.0   (25dB with 4.3-10.0 male/female)
50FHC-026-10-6 4.3-10.0   (26dB with 4.3-10.0 male/female)
50FHC-027-10-6 4.3-10.0   (27dB with 4.3-10.0 male/female)
50FHC-028-10-6 4.3-10.0   (28dB with 4.3-10.0 male/female)
50FHC-029-10-6 4.3-10.0   (29dB with 4.3-10.0 male/female)
50FHC-030-10-6 4.3-10.0   (30dB with 4.3-10.0 male/female)
50FHC-031-10-6 4.3-10.0   (31dB with 4.3-10.0 male/female)
50FHC-032-10-6 4.3-10.0   (32dB with 4.3-10.0 male/female)

50FHC-033-10-6 4.1-9.5   (33dB with 4.1-9.5 male/female)
50FHC-034-10-6 4.1-9.5   (34dB with 4.1-9.5 male/female)
50FHC-035-10-6 4.1-9.5   (35dB with 4.1-9.5 male/female)
50FHC-036-10-6 4.1-9.5   (36dB with 4.1-9.5 male/female)
50FHC-037-10-6 4.1-9.5   (37dB with 4.1-9.5 male/female)
50FHC-038-10-6 4.1-9.5   (38dB with 4.1-9.5 male/female)
50FHC-039-10-6 4.1-9.5   (39dB with 4.1-9.5 male/female)
50FHC-040-10-6 4.1-9.5   (40dB with 4.1-9.5 male/female)

50FHC-041-10-6 SMA   (41dB with SMA male/female)
50FHC-042-10-6 SMA   (42dB with SMA male/female)
50FHC-043-10-6 SMA   (43dB with SMA male/female)
50FHC-044-10-6 SMA   (44dB with SMA male/female)
50FHC-045-10-6 SMA   (45dB with SMA male/female)
50FHC-046-10-6 SMA   (46dB with SMA male/female)
50FHC-047-10-6 SMA   (47dB with SMA male/female)
50FHC-048-10-6 SMA   (48dB with SMA male/female)
50FHC-049-10-6 SMA   (49dB with SMA male/female)
50FHC-050-10-6 SMA   (50dB with SMA male/female)

Non-standard and mixed RF connector configurations are available upon request:

50FHC-003-10-6 SMA F/F   (SMA female/female)
50FHC-006-10-6 TNC M/M   (TNC male/male)
50FHC-010-10-6 N M/SMA F   (N male/SMA female)
50FHC-010-10-6 N F/SMA F   (N female/SMA female)

Additional information

Attenuation Value

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50

Connector Type

4.1/9.5, 4.3/10, N, Other, SMA, TNC
