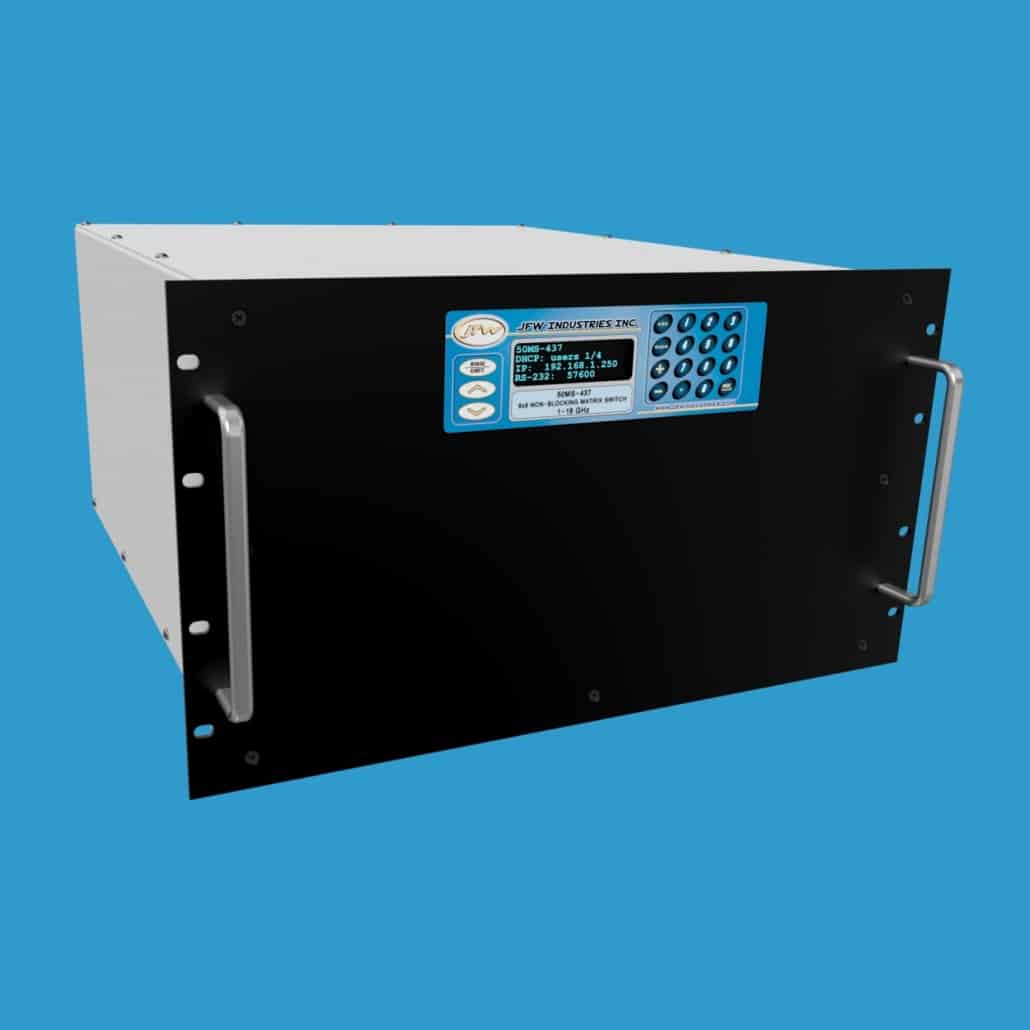

50MS-437 | 8x8 Non-Blocking Matrix Switch
50MS-437 | 8x8 Non-Blocking Matrix Switch

50MS-437 | 8×8 Non-Blocking Matrix Switch

JFW Model #: 50MS-437
Impedance: 50 Ohm
Configuration: 8 x 8 Non-Blocking Matrix Switch
Frequency Range: 1-18 GHz
Switch Type: Solid-state
Unused IN Ports: Absorptive
Unused OUT Ports: Reflective
RF Input Power: +30 dBm
RF Connectors: N or SMA
Documentation: Data Sheet | Drawing | Diagram

Clear
Categories: Matrix Switches, Non-Blocking Matrix Switches, Test Systems
  • Description
  • Additional information

Description

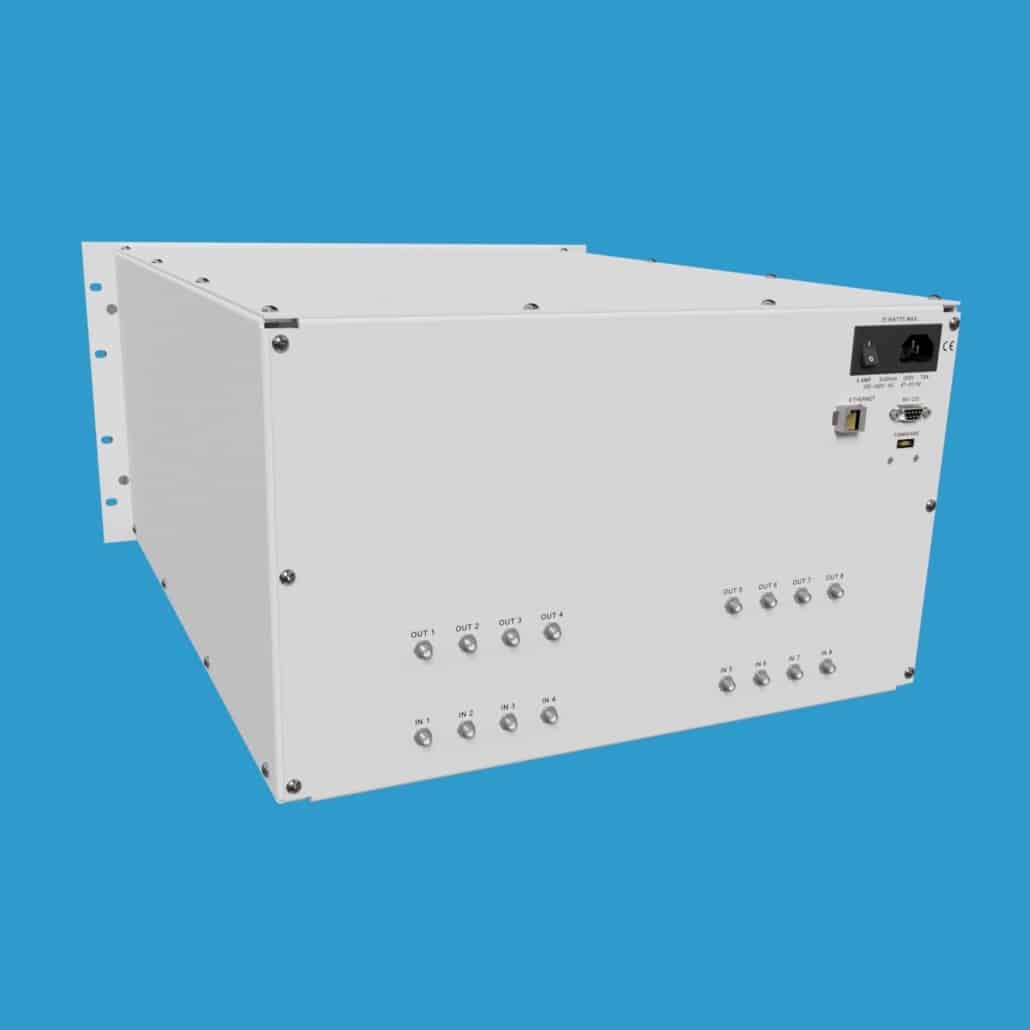

Model 50MS-437 is an 8×8 non-blocking matrix switch operating 1-18GHz. Each input port can be connected to multiple output ports simultaneously. Each output port can be connected to only one input port. The 8×8 non-blocking matrix can only have a maximum of 8 active paths. All unused input ports are absorptive (i.e. self-terminating into 50 Ohm). All unused output ports are reflective. It is available with N or SMA connectors. We label the ports as IN and OUT as a naming convention only. All ports operate bi-directionally.

Remote Control
The matrix switch can be remotely controlled via an Ethernet connection or a serial connection (i.e. RS-232). The network settings can be changed manually with the keypad or remotely using the NET remote command. The network interface can be set to either DHCP mode or Fixed Address mode. All new test systems are shipped from the factory in DHCP mode. A RS-232 connection to the test system is made using a null modem type serial cable. Baud rates up to 155200 baud are available. The baud rate can be changed manually with the keypad or remotely with the SERIAL remote command.

Additional information

Connector Type

N Female, SMA Female
