You are here: Home1 / Shop2 / RF Switches3 / 50 Ohm Electro-Mechanical RF Switches (Reflective)4 / 1P2T RF Switch DC-12.4 GHz | 50S-1314+XX N

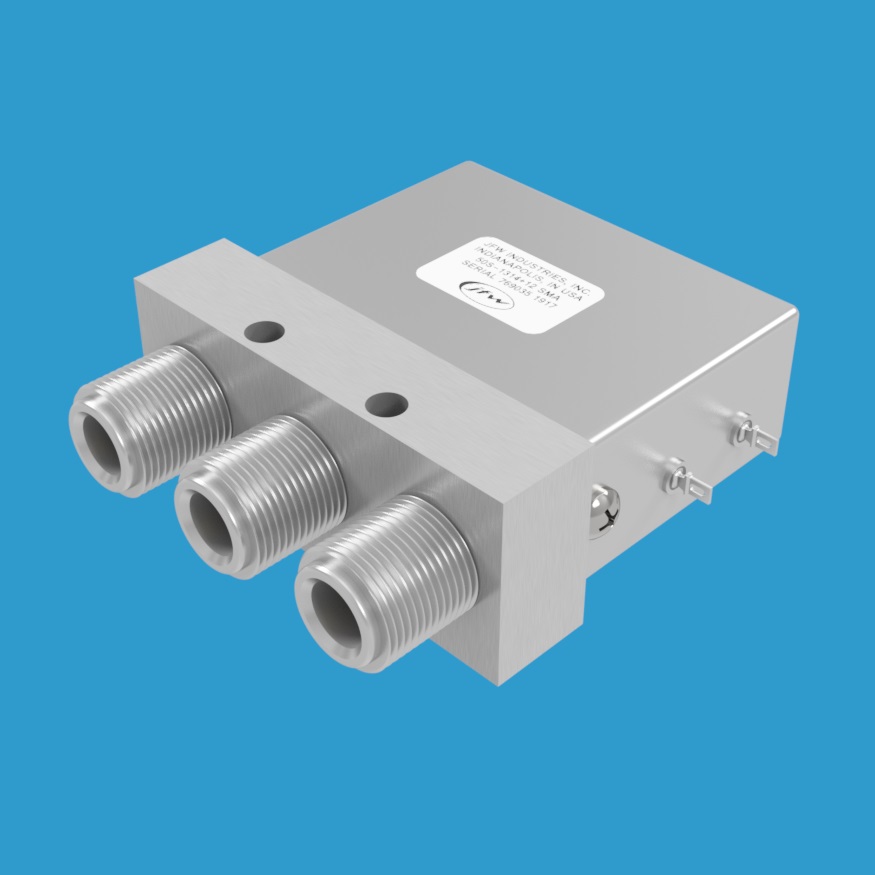

1P2T failsafe reflective electro-mechanical RF switch with N female

1P2T RF Switch DC-12.4 GHz | 50S-1314+XX N

JFW Model #: 50S-1314+XX
Impedance: 50 Ohm
Switch Configuration: 1P2T
Switch Type: Failsafe, Reflective
Frequency Range: DC-12.4 GHz
Switching Speed: 20 mS
RF Connector: N female
Control Voltage: +12, +15, +24, +28 Vdc
Documentation: Data Sheet |Drawing

Clear
Categories: 50 Ohm Electro-Mechanical RF Switches (Reflective), RF Switches
  • Description
  • Additional information

Description

Model 50S-1314+XX is a 50 Ohm electro-mechanical 1P2T RF switch operating DC-12.4 GHz with N female RF connectors.  This model is failsafe and the unused port is reflective.  The failsafe path is COM to NC.  This 1P2T has three RF ports:  COM (common port), NC (normally closed port), NO (normally open port).  This 1P2T RF switch has one control line.  The control line is activated with +XX Vdc signal levels (i.e. +12Vdc, +24Vdc).

Additional information

Control Voltages

+12 Vdc, +15 Vdc, +24 Vdc, +28 Vdc

Connector Type

N Female
