You are here: Home1 / Shop2 / RF Switches3 / 50 Ohm Electro-Mechanical RF Switches (Reflective)4 / 1P4T RF Switch DC-40 GHz | 50S-1773+XX 2.9MM
1P4T electro-mechanical RF switch DC-40 GHz

1P4T RF Switch DC-40 GHz | 50S-1773+XX 2.9MM

JFW Model #: 50S-1773+XX
Impedance: 50 Ohm
Switch Configuration: 1P4T
Switch Type: Normally Open, Reflective
Frequency Range: DC-40 GHz
Switching Speed: 20 mS
RF Connector: 2.9 mm female
Control Voltage: +12. +15, +24, +28 Vdc
Documentation: Data Sheet |Drawing

Clear
Categories: 50 Ohm Electro-Mechanical RF Switches (Reflective), RF Products for 5G Wireless Testing, RF Switches
  • Description
  • Additional information

Description

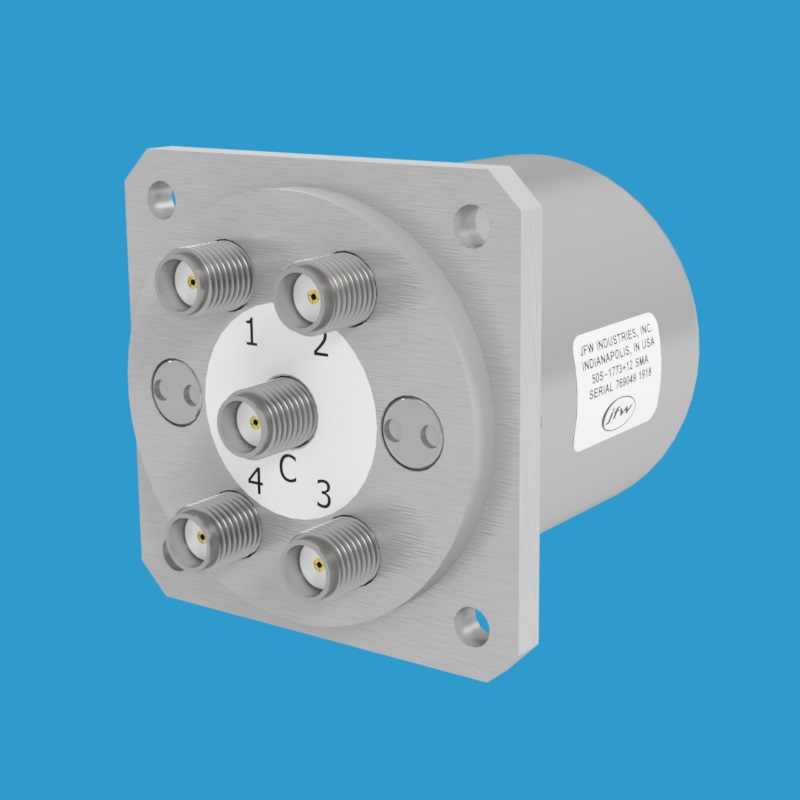

Model 50S-1773+XX is a 50 Ohm electro-mechanical 1P4T RF switch operating DC-40 GHz with 2.9mm female RF connectors.  This RF switch is normally open type and the unused ports are reflective.  The normally open design allows the switch to have an “all off” state.  This 1P4T RF switch has four control lines.  Each control line is activated with +XX Vdc signal levels (i.e. +12Vdc, +24Vdc).  Only one control line can be active at a time.

Additional information

Control Voltages

+12 Vdc, +15 Vdc, +24 Vdc, +28 Vdc

Connector Type

2.92mm Female
