You are here: Home1 / Shop2 / RF Switches3 / 50 Ohm Solid-State RF Switches (Absorptive)4 / 1P1T RF Switch 5-2000 MHz | 50S-2064

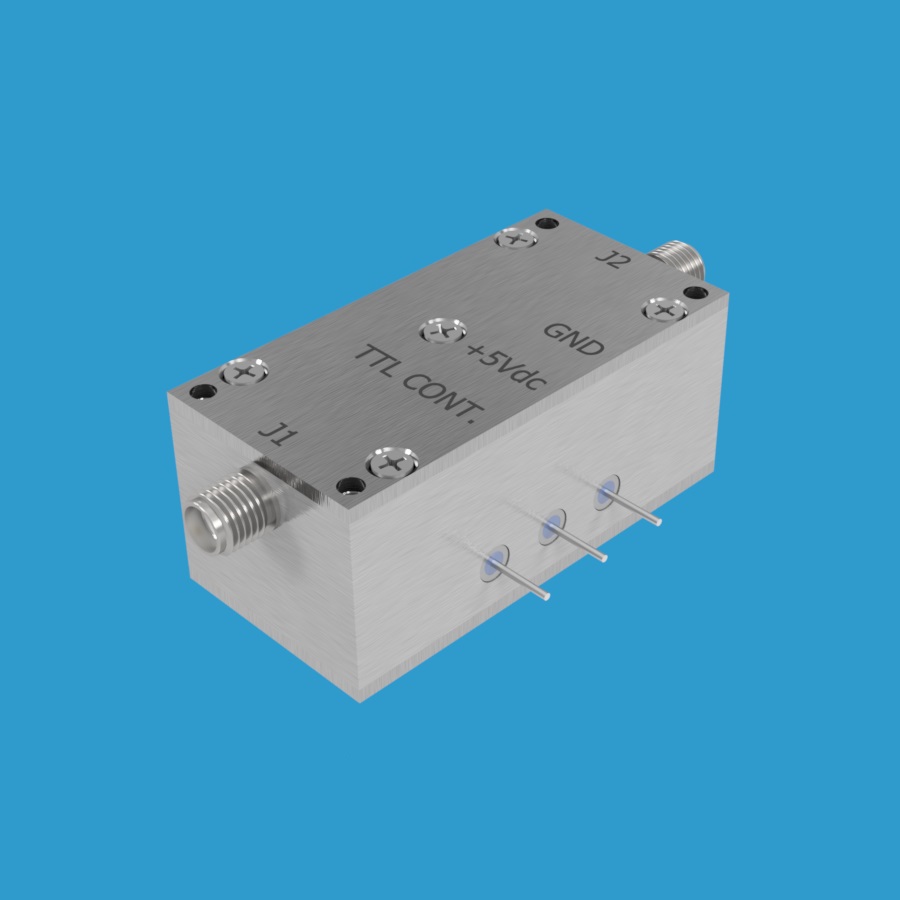

50 Ohm absorptive 1P1T solid-state switch with SMA female

1P1T RF Switch 5-2000 MHz | 50S-2064

JFW Model #: 50S-2064
Impedance: 50 Ohm
Configuration: 1P1T solid-state RF switch
Type: Absorptive (i.e. Self-Terminating)
Frequency Range: 5-2000 MHz
Switching Speed: 1.5 uS
RF Connectors: SMA female
Control Logic: TTL
Documentation: Data Sheet | Drawing

Categories: 50 Ohm Solid-State RF Switches (Absorptive), RF Switches
  • Description
  • Additional information

Description

Model 50S-2064 is a 50 Ohm solid-state 1P1T RF switch operating 5-2000 MHz rated at +10dBm at 5-100 MHz and +20dBm at 100-2000 MHz. This RF switch is absorptive type (i.e. self-terminating). Both ports will self-terminate at 50 Ohm impedance when the 1P1T is in the OFF setting. It is available with 50 Ohm SMA female RF connectors. The 1P1T RF switch has one control line. The control line is activated with TTL signal levels.

Additional information

Connector Type

SMA Female
