You are here: Home1 / Shop2 / Test Systems3 / Matrix Switches4 / 75MS-040 | 4×4 Non-Blocking Matrix Switch

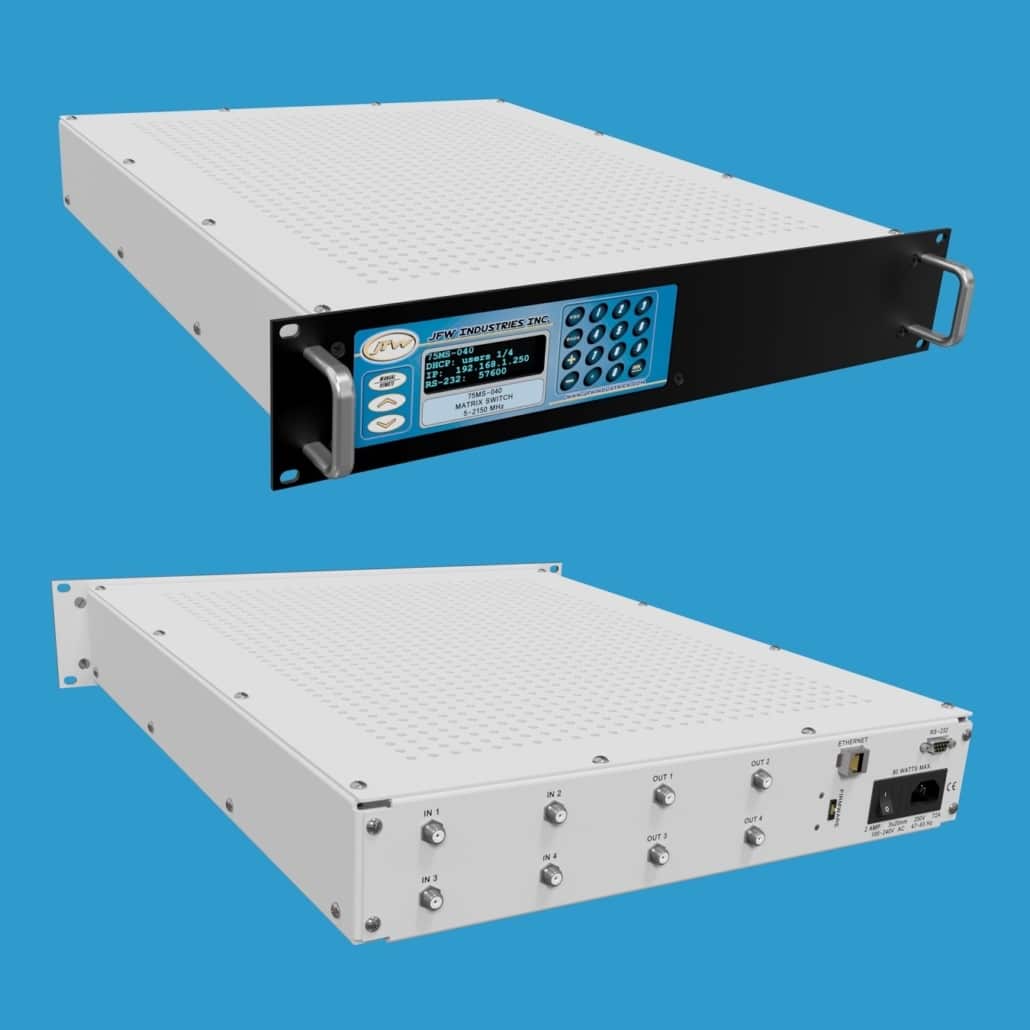

75 Ohm 4x4 Non-Blocking Matrix Switch 5-2150 MHz | 75MS-040

75MS-040 | 4×4 Non-Blocking Matrix Switch

JFW Model #: 75MS-040
Impedance: 75 Ohm
Configuration: 4 x 4 Non-Blocking Matrix Switch
Frequency Range: 5-2150 MHz
Switch Type:
 Solid-state
Unused Ports: Absorptive
RF Input Power: +10 dBm
RF Connectors: F Female
Documentation: Data Sheet | Drawing | Diagram

Categories: Matrix Switches, Non-Blocking Matrix Switches, Test Systems
  • Description
  • Additional information

Description

Model 75MS-040 is a 75 Ohm 4×4 non-blocking matrix switch operating 5-2150MHz.  Each input port can be connected to multiple output ports simultaneously.  Each output port can be connected to only one input port.  The 4×4 non-blocking matrix can only have a maximum of 4 active paths.  All unused ports are absorptive (i.e. self-terminating into 75 Ohm).  It is available with F female connectors.  We label the ports as IN and OUT as a naming convention only.  All ports operate bi-directionally.

Remote Control
The matrix switch can be remotely controlled via an Ethernet connection or a serial connection (i.e. RS-232).  The network settings can be changed manually with the keypad or remotely using the NET remote command.  The network interface can be set to either DHCP mode or Fixed Address mode.  All new test systems are shipped from the factory in DHCP mode.  A RS-232 connection to the test system is made using a null modem type serial cable.  Baud rates up to 155200 baud are available.  The baud rate can be changed manually with the keypad or remotely with the SERIAL remote command.

Additional information

Connector Type

F Female
