You are here: Home1 / Shop2 / Test Systems3 / Attenuator Assemblies4 / Assembly with 24 Attenuators 200-6000 MHz | 0-95dB x 1dB | 50PA-1197
JFW model 50PA-1197 SMA twenty-four channel attenuator assembly with Ethernet control

Assembly with 24 Attenuators 200-6000 MHz | 0-95dB x 1dB | 50PA-1197

JFW Model #: 50PA-1197
Impedance: 50 Ohms
Configuration: 24 Attenuators
Attenuator Type: Solid-state step attenuator
dB Total: 95 dB
dB Step: 1 dB
Frequency Start: 200 MHz
Frequency Stop: 6 GHz
Manual Control: Display and Keypad
Remote Control: Ethernet and RS-232
RF Connectors: SMA female
Enclosure Type: Benchtop
Documentation: Data Sheet | Drawing

Categories: Attenuator Assemblies, Benchtop Attenuator Assemblies (50 Ohm), Test Systems
  • Description
  • Additional information

Description

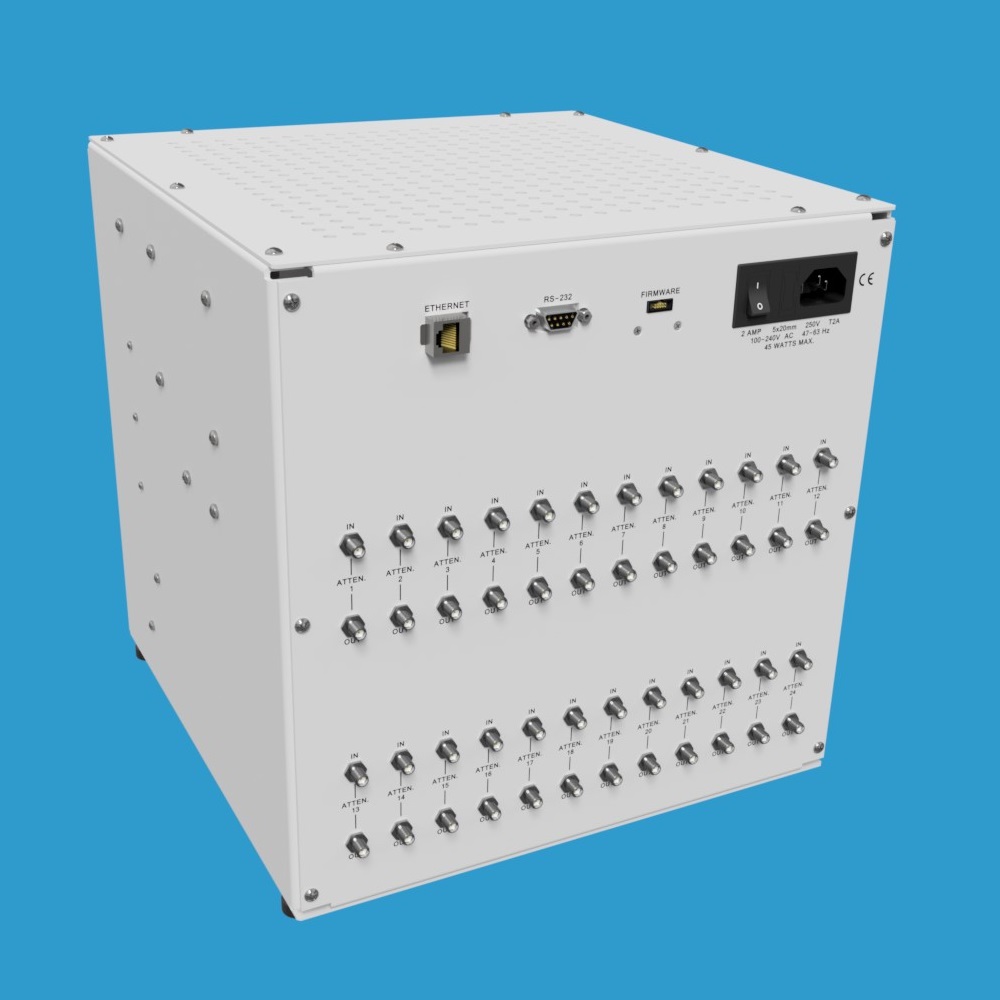

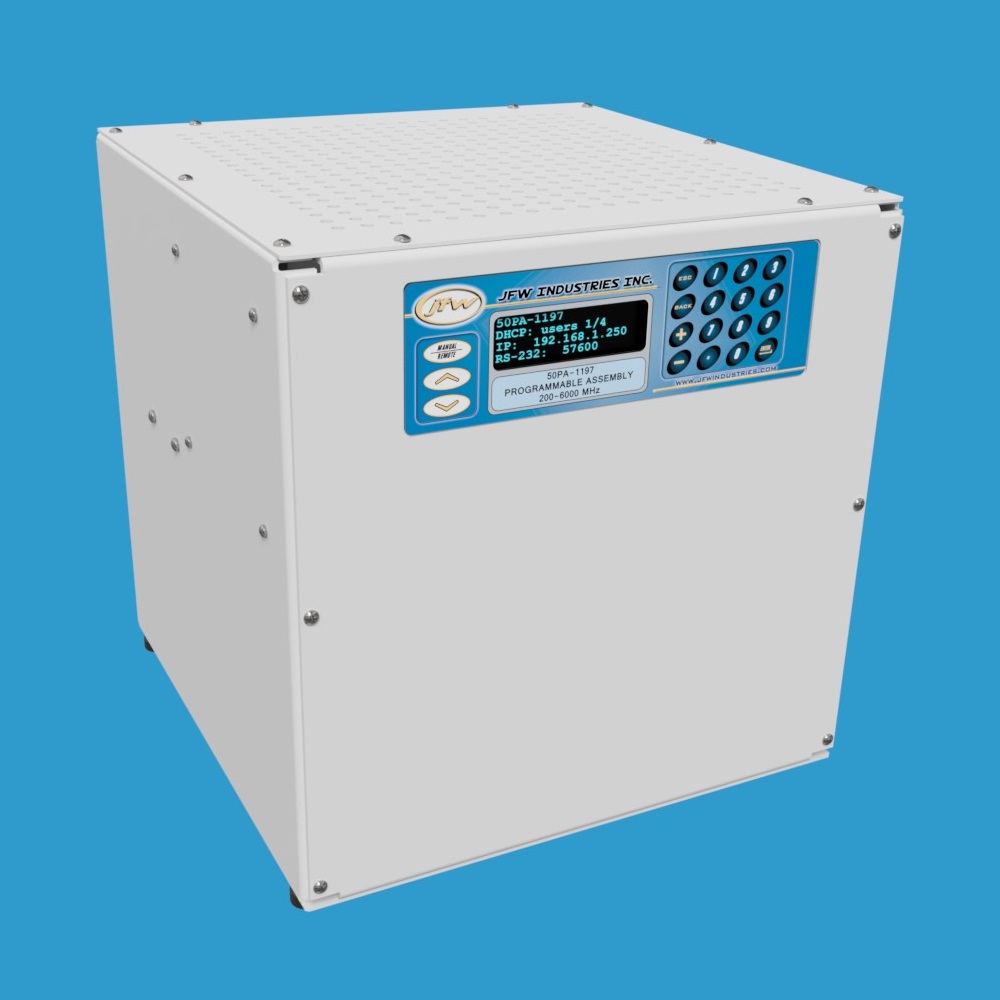

Model 50PA-1197 is a 50 Ohm benchtop attenuator assembly containing 24 solid-state step attenuators.  The benchtop enclosure is a 12in x 12in x 12in cube with all of the SMA female connectors located on the rear panel.  The attenuators have an attenuation range of 0 to 95dB by 1dB steps and operate at 200 MHz to 6 GHz.  The attenuators can be controlled manually with the keypad or remotely via Ethernet or Serial connection.

Manual Attenuator Control
The manual control menu allows you to set/read an attenuator, fade an attenuator, or perform a handover using two attenuators.

Remote Attenuator Control
This attenuator assembly can be remotely controlled via an Ethernet connection or a serial connection (i.e. RS-232).  The network settings can be changed manually with the keypad or remotely using the NET remote command.  The network interface can be set to either DHCP mode or Fixed Address mode.  All new test systems are shipped from the factory in DHCP mode.  A RS-232 connection to the test system is made using a null modem type serial cable.  Baud rates up to 155200 baud are available.  The baud rate can be changed manually with the keypad or remotely with the SERIAL remote command.

Additional information

Connector Type

SMA Female
