You are here: Home1 / Shop2 / Fixed Attenuators3 / 50 Ohm Fixed Attenuators (75 to 1000 Watts)4 / Bolt Down 100 Watt Fixed Attenuator DC-1GHz | 50FHSR-xxx-100

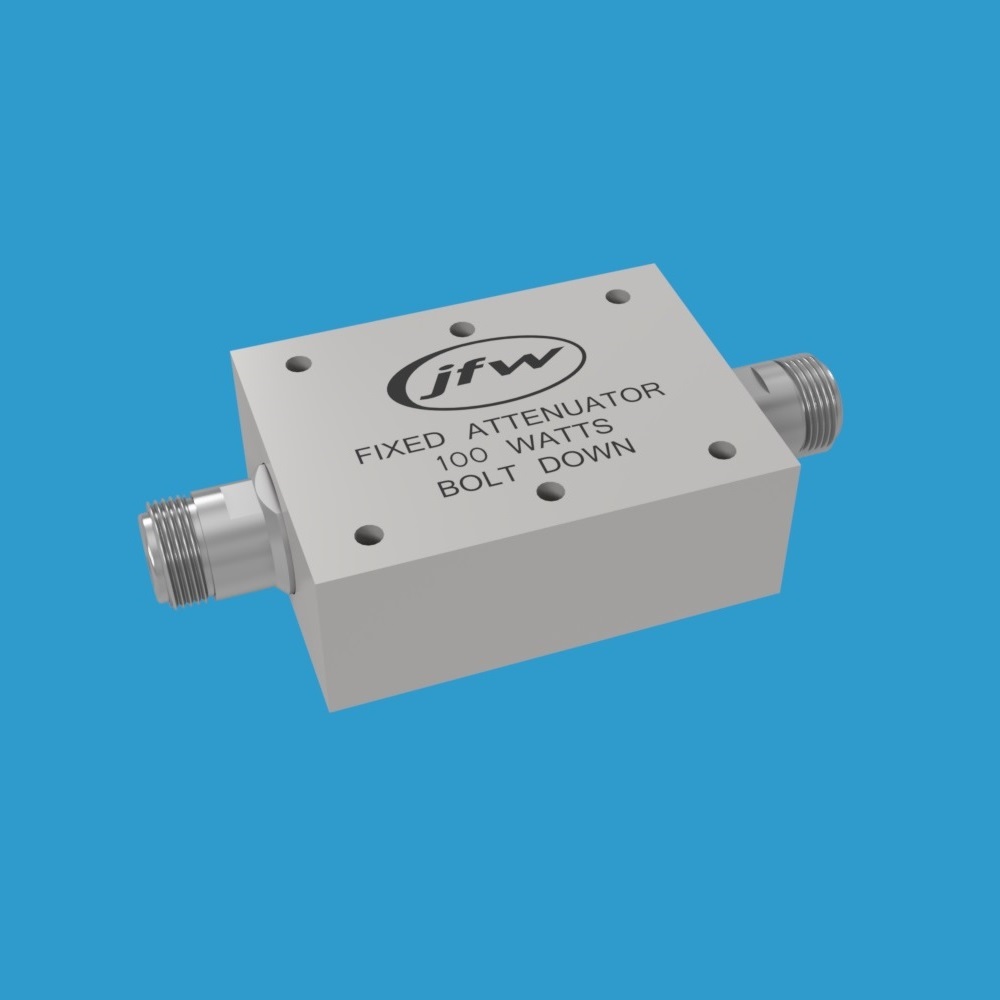

Bolt Down Fixed Attenuator 100 Watts average

Bolt Down 100 Watt Fixed Attenuator DC-1GHz | 50FHSR-xxx-100

JFW Model #: 50FHSR-XXX-100
Type:  Bolt-down fixed attenuator
Impedance: 50 Ohm
Frequency Range: DC-1 GHz
RF Input Power: 100 Watts
Attenuation Values: 1-50 dB
Heatsink Style: Bolt-down
RF Connectors: BNC, N, SMA, TNC
Documentation:
Specification Sheet
Drawing (N)
Drawing (N F/F)
Drawing (SMA)
Drawing (SMA F/F)

If Connector Type is Other, please specify in REMARKS field of the Request a Quote form.

Clear
Categories: 50 Ohm Fixed Attenuators (75 to 1000 Watts), Fixed Attenuators
  • Description
  • Additional information

Description

JFW model 50FHSR-XXX-100 is a bolt-down 50 Ohm coaxial fixed attenuator rated at 100 Watts average power operating DC-1000MHz.  Available dB values from 1dB to 50dB.  The enclosure has through-hole mounting so the unit can be bolted down to a heatsink or cold plate.

For model 50FHSR-XXX-100, replace the XXX with the desired attenuation value and add the RF connector type at the end to create the full model number.

Example Model Numbers:

50FHSR-001-100N   (1dB with N male/female)
50FHSR-002-100N   (2dB with N male/female)
50FHSR-003-100N   (3dB with N male/female)
50FHSR-004-100N   (4dB with N male/female)
50FHSR-005-100N   (5dB with N male/female)
50FHSR-006-100N   (6dB with N male/female)
50FHSR-007-100N   (7dB with N male/female)
50FHSR-008-100N   (8dB with N male/female)
50FHSR-009-100N   (9dB with N male/female)

50FHSR-010-100N F/F   (10dB with N female/female)
50FHSR-011-100N F/F    (11dB with N female/female)
50FHSR-012-100N F/F   (12dB with N female/female)
50FHSR-013-100N F/F   (13dB with N female/female)
50FHSR-014-100N F/F   (14dB with N female/female)
50FHSR-015-100N F/F   (15dB with N female/female)

50FHSR-016-100SMA   (16dB with SMA male/female)
50FHSR-017-100SMA   (17dB with SMA male/female)
50FHSR-018-100SMA   (18dB with SMA male/female)
50FHSR-019-100SMA   (19dB with SMA male/female)
50FHSR-020-100SMA   (20dB with SMA male/female)
50FHSR-021-100SMA   (21dB with SMA male/female)
50FHSR-022-100SMA   (22dB with SMA male/female)
50FHSR-023-100SMA   (23dB with SMA male/female)
50FHSR-024-100SMA   (24dB with SMA male/female)

50FHSR-025-100SMA F/F   (25dB with SMA female/female)
50FHSR-026-100SMA F/F   (26dB with SMA female/female)
50FHSR-027-100SMA F/F   (27dB with SMA female/female)
50FHSR-028-100SMA F/F   (28dB with SMA female/female)
50FHSR-029-100SMA F/F   (29dB with SMA female/female)
50FHSR-030-100SMA F/F   (30dB with SMA female/female)

50FHSR-031-100TNC   (31dB with TNC male/female)
50FHSR-032-100TNC   (32dB with TNC male/female)
50FHSR-033-100TNC   (33dB with TNC male/female)
50FHSR-034-100TNC   (34dB with TNC male/female)
50FHSR-035-100TNC   (35dB with TNC male/female)

50FHSR-036-100TNC F/F   (36dB with TNC female/female)
50FHSR-037-100TNC F/F   (37dB with TNC female/female)
50FHSR-038-100TNC F/F   (38dB with TNC female/female)
50FHSR-039-100TNC F/F   (39dB with TNC female/female)
50FHSR-040-100TNC F/F   (40dB with TNC female/female)

50FHSR-041-100BNC   (41dB with BNC male/female)
50FHSR-042-100BNC   (42dB with BNC male/female)
50FHSR-043-100BNC   (43dB with BNC male/female)
50FHSR-044-100BNC   (44dB with BNC male/female)
50FHSR-045-100BNC   (45dB with BNC male/female)

50FHSR-046-100BNC F/F   (46dB with BNC female/female)
50FHSR-047-100BNC F/F   (47dB with BNC female/female)
50FHSR-048-100BNC F/F   (48dB with BNC female/female)
50FHSR-049-100BNC F/F   (49dB with BNC female/female)
50FHSR-050-100BNC F/F   (50dB with BNC female/female)

Non-standard and mixed RF connector configurations are available upon request:

50FHSR-003-100N F/F   (N female/female)
50FHSR-006-100SMA F/F   (SMA female/female)
50FHSR-010-100N M/SMA F   (N male/SMA female)
50FHSR-020-100SMA M/N F   (SMA male/N female)
50FHSR-020-100TNC M/N F   (TNC male/N female)

Additional information

Attenuation Value

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50

Connector Type

BNC, BNC Female/Female, N, N Female/Female, Other, SMA, SMA Female/Female, TNC, TNC Female/Female
