You are here: Home1 / Shop2 / Manually Variable Attenuators3 / 50 Ohm Panel Mounted Manual Attenuators4 / Panel Mounted Attenuators DC-2.7 GHz 0-60dB x 1dB | 50PM-163

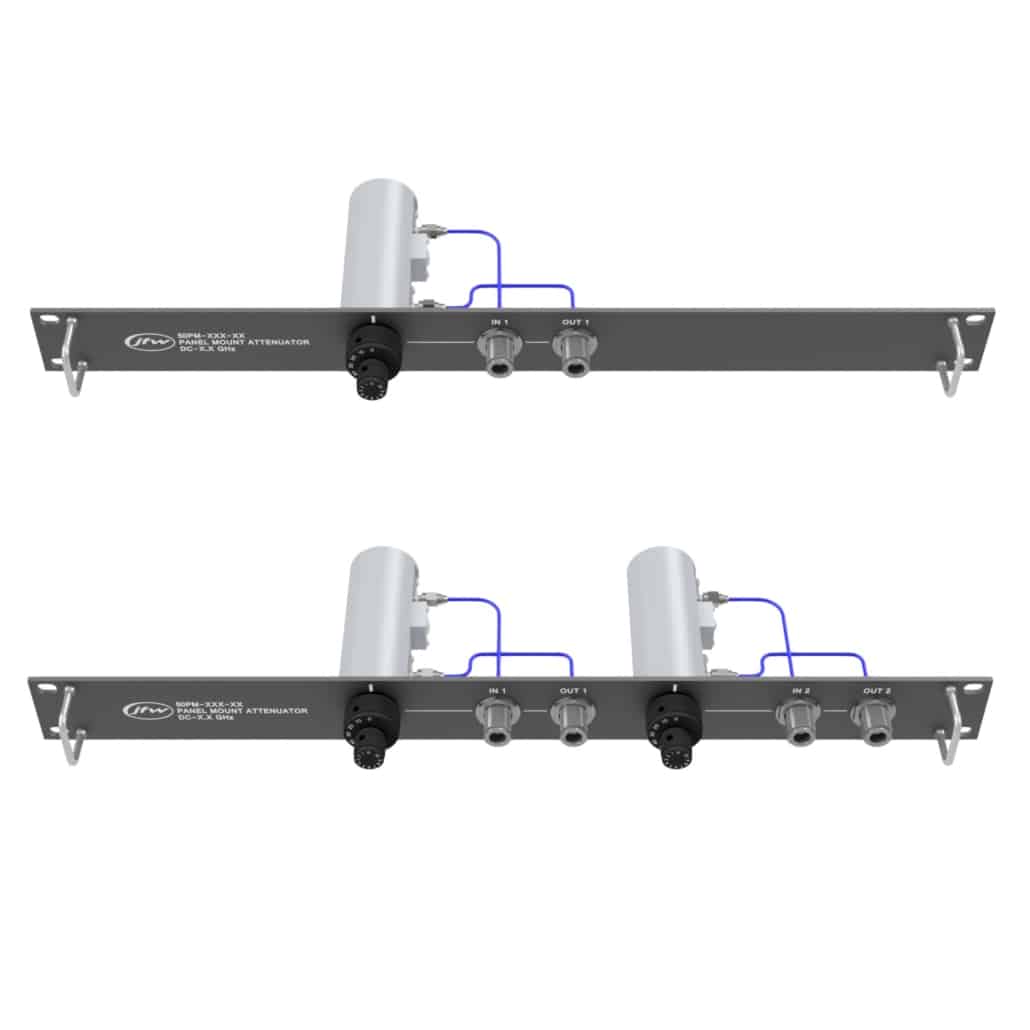

Panel mounted manual attenuators with N female located on the front panel

Panel Mounted Attenuators DC-2.7 GHz 0-60dB x 1dB | 50PM-163

JFW Model #: 50PM-163-XX
Type: Manually variable attenuators
Panel: 19 inch rack mountable
RF Connectors:  Located on front panel
Impedance: 50 Ohm
Configuration: 1-5 Attenuators
dB Total: 60 dB
dB Step: 1 dB
Frequency Range: DC-2700 MHz
RF Input Power: 2 Watt
RF Connectors: N or SMA

Documentation:
Data Sheet
Drawing (1 attenuator, N female)
Drawing (2 attenuators, N female)
Drawing (3 attenuators, N female)
Drawing (4 attenuators, SMA female)
Drawing (5 attenuators, SMA female)

Clear
Categories: 50 Ohm Panel Mounted Manual Attenuators, Manually Variable Attenuators
  • Description
  • Additional information

Description

Model 50PM-163-XX consists of 50 Ohm manual attenuators mounted to a 19 inch rack mountable panel.  All of the RF connectors are front facing on the front panel.  The manual attenuators have attenuation range 0-60dB by 1dB steps and operate DC-2700 MHz.  The attenuators are rated for 2 Watts average RF power.  The attenuators are dual rotary type (i.e. two manual knobs).  The small knob is 1dB step.  The large knob is 10dB step.  They are available with N female or SMA female.

Example Models
50PM-163-01 N   (1 attenuator, 2 N female)
50PM-163-02 N   (2 attenuators, 4 N female)
50PM-163-03 N   (3 attenuators, 6 N female)

50PM-163-01 SMA   (1 attenuator, 2 SMA female)
50PM-163-02 SMA   (2 attenuators, 4 SMA female)
50PM-163-03 SMA   (3 attenuators, 6 SMA female)
50PM-163-04 SMA   (4 attenuators, 8 SMA female)
50PM-163-05 SMA   (5 attenuators, 10 SMA female)

Additional information

Connector Type

N Female, SMA Female

Number of Attenuators

1, 2, 3, 4, 5

Related products

  • 50 Ohm dual knob manual attenuator with BNC female connectors and attenuation range 0 to 50dB by 1dB steps

    Manual Attenuator DC-2500MHz 0-50dB x 1dB | 50DR-046

    Read more
  • Manual attenuator with Toggle Switches

    75 Ohm Toggle Attenuator DC-500 MHz 0-65dB x 1dB | 75TA-006

    Read more
  • 75 Ohm manual attenuator with BNC female and attenuation range 0 to 10dB by 1dB steps

    Manual Attenuator DC-1000 MHz 0-10dB x 1dB | 75R-056

    Read more
  • Manual attenuator with Toggle Switches

    50 Ohm Toggle Attenuator DC-850 MHz 0-45.5dB x 0.5dB | 50TA-007

    Read more
