You are here: Home1 / Shop2 / Programmable Attenuators3 / 50 Ohm Solid-State Programmable Attenuators (TTL)4 / Programmable Attenuator 0.2-8.4 GHz 0-95dB x 1dB | 50P-2109

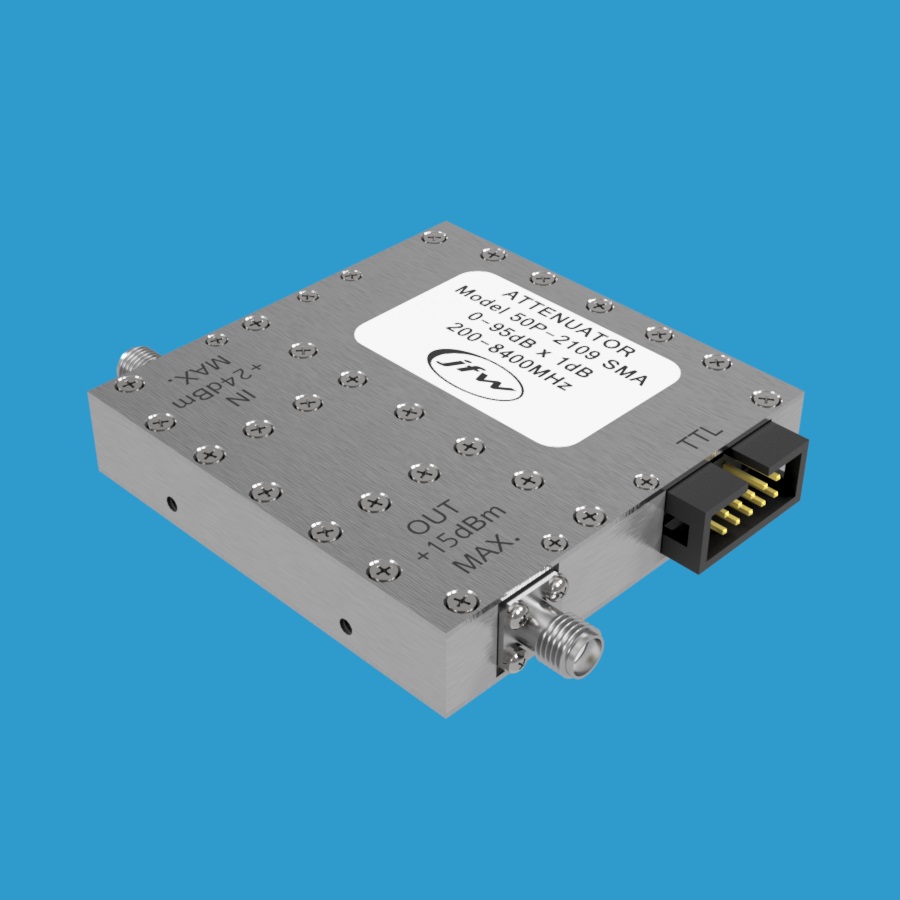

50 Ohm solid-state programmable attenuator with attenuation range 0-95 x 1dB

Programmable Attenuator 0.2-8.4 GHz 0-95dB x 1dB | 50P-2109

JFW Model #: 50P-2109
Type:  Solid-State Programmable Attenuator
Impedance: 50 Ohm
dB Total: 95 dB
dB Step: 1 dB
Frequency Range: 200-8400 MHz
Switching Speed: 1 uS
RF Input Power: +24 dBm (Input), +15 dBm (Output)
Control: TTL
RF Connectors: SMA
Documentation: Data Sheet | Drawing

Categories: 50 Ohm Solid-State Programmable Attenuators (TTL), Programmable Attenuators
  • Description
  • Additional information

Description

Model 50P-2109 is a 50 Ohm solid-state programmable attenuator with attenuation range 0 to 95dB by 1dB steps. The unit operates bi-directionally. The unit is labeled “input” and “output” because the RF power rating is different for each port. The input port is rated for +24 dBm. The output port is rated for +15 dBm. It is available with SMA female RF connectors. The attenuator has seven individually controlled attenuation steps: 1dB, 2dB, 4dB, 8dB, 16dB, 32dB and 32dB.

TTL Control
Each of the attenuation steps has a corresponding TTL control line. See the outline drawing for the control pinout. TTL high will turn on an attenuation step. TTL low will turn off an attenuation step. Use multiple control lines simultaneously to set combinational attenuation values. To activate the 7dB setting, the 1dB/2dB/4dB control lines must all be TTL high. To activate the 17dB setting, the 1dB/16dB control lines must be TTL high. To set the attenuator to the insertion loss state (i.e. 0dB setting), all control lines must be set to TTL low.

Additional information

Connector Type

SMA Female
