75 Ohm programmable attenuator | DC-2150 MHz | 0-63.5dB x 0.5dB steps

Programmable Attenuator DC-2150 MHz | 0-63.5dB x 0.5dB | 75P-225

JFW Model #: 75P-225
Type:  Relay programmable attenuator
Impedance: 75 Ohm
dB Total: 63.5 dB
dB Step: 0.5 dB
Frequency Range: DC-2150 MHz
Switching Speed: 10 mS
RF Input Power: 0.5 Watts
Control Voltage: +12 Vdc
RF Connectors: BNC, F, N
Documentation: Data Sheet | Drawing

Clear
Categories: 75 Ohm Relay Programmable Attenuators, Programmable Attenuators
  • Description
  • Additional information

Description

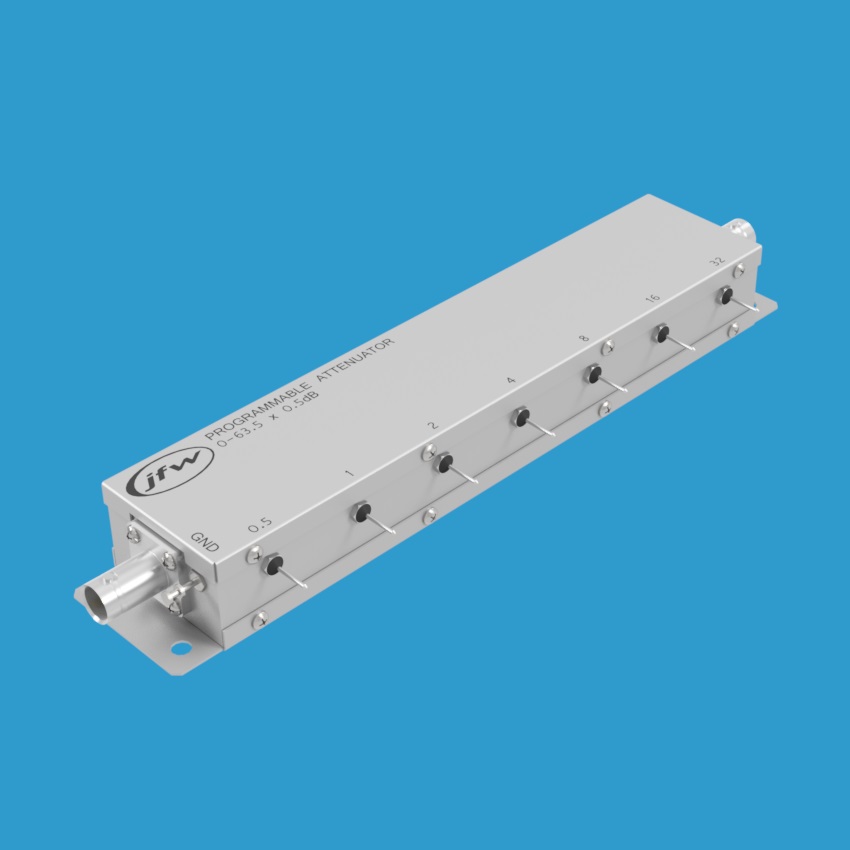

Model 75P-225 is a 75 Ohm relay programmable attenuator with attenuation range 0 to 63.5dB by 0.5dB steps.  It operates DC-2150 MHz and is rated for 0.5 Watts of RF input power.  This step attenuator is available with 75 Ohm BNC, F or N female RF connectors.  The attenuator has seven individually controlled steps:  0.5dB, 1dB, 2dB, 4dB, 8dB, 16dB and 32dB.

+12Vdc Controlled
Each of the attenuation steps has a corresponding solder feedthru where the control Voltage is applied.  Applying +12Vdc to a solder feedthru will turn on the attenuation for that step.  The internal relays are failsafe to their thru path setting (i.e. failsafe to 0dB setting).  An open circuit (or Ground) on a solder feedthru will turn off the attenuation for that step.  Activate multiple steps simultaneously to set combinational attenuation values.  For a 7dB setting, the 1dB/2dB/4dB control lines must active.  For the 24dB setting, the 8dB/16dB control lines must be active.  To set the attenuator to the insertion loss state (i.e. 0dB setting), all control lines must off (i.e. Ground or Open Circuit).

Additional information

Connector Type

BNC Female, F Female, N Female
