Description

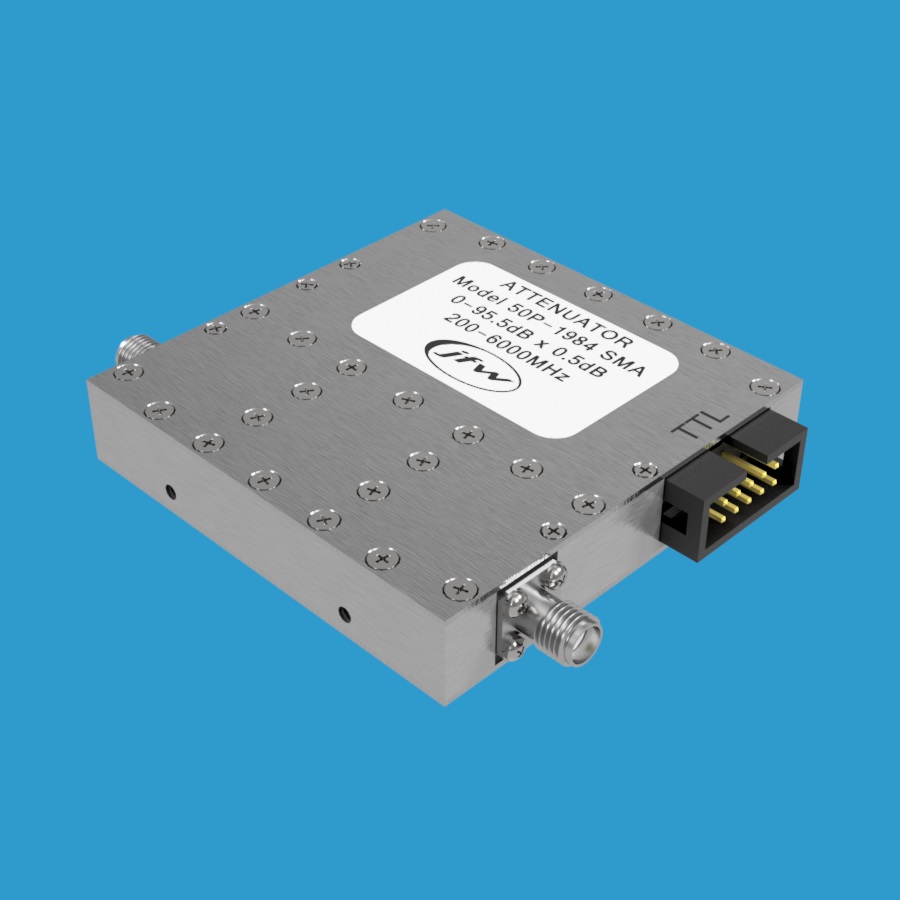

Model 50P-1984 is a 50 Ohm solid-state programmable attenuator with attenuation range 0 to 95.5dB by 0.5dB steps. The unit operates bi-directionally. The attenuator is rated for +27 dBm. It is available with SMA female or SMA male RF connectors. The attenuator has eight individually controlled attenuation steps: 0.5dB, 1dB, 2dB, 4dB, 8dB, 16dB, 32dB and 32dB.
TTL Control
Each of the attenuation steps has a corresponding TTL control line. See the outline drawing for the control pinout. TTL high will turn on an attenuation step. TTL low will turn off an attenuation step. Use multiple control lines simultaneously to set combinational attenuation values. To activate the 7dB setting, the 1dB/2dB/4dB control lines must all be TTL high. To activate the 17dB setting, the 1dB/16dB control lines must be TTL high. To set the attenuator to the insertion loss state (i.e. 0dB setting), all control lines must be set to TTL low.
