You are here: Home1 / Shop2 / Programmable Attenuators3 / 50 Ohm Solid-State Programmable Attenuators (TTL)4 / Programmable Attenuator 200-8400 MHz 0-63dB x 0.5dB | 50P-2099

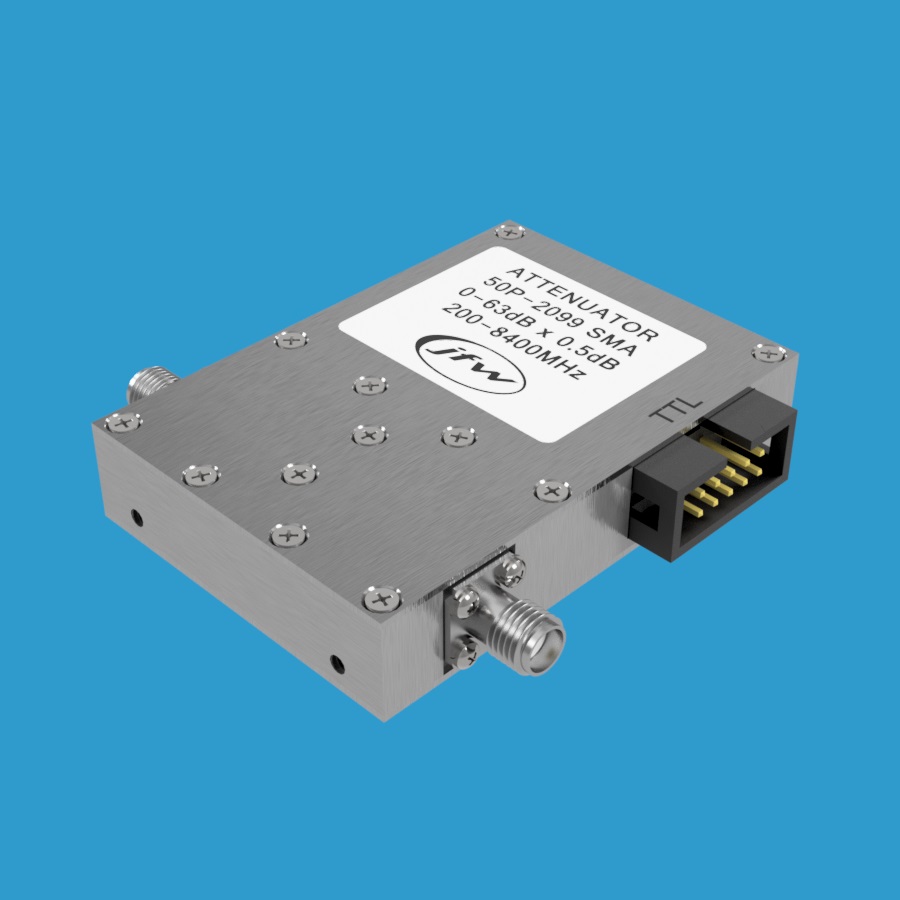

50 Ohm TTL solid-state programmable attenuator 0-63 x 0.5dB step at 200-8000MHz

Programmable Attenuator 200-8400 MHz 0-63dB x 0.5dB | 50P-2099

JFW Model #: 50P-2099
Type:  Solid-State Programmable Attenuator
Impedance: 50 Ohm
dB Total: 63 dB
dB Step: 0.5 dB
Frequency Range: 200-8400 GHz
Switching Speed: 1 uS
RF Input Power: +24 dBm (Input), +15 dBm (Output)
Control: TTL
RF Connectors: SMA
Documentation: Data Sheet | Drawing

Categories: 50 Ohm Solid-State Programmable Attenuators (TTL), Programmable Attenuators
  • Description
  • Additional information

Description

Model 50P-2099 is a 50 Ohm solid-state programmable attenuator with attenuation range 0 to 63dB by 0.5dB steps over 200-8400 MHz.  The unit operates bi-directionally.  The unit is labeled “input” and “output” because the RF power rating is different for each port.  The input port is rated for +24 dBm.  The output port is rated for +15 dBm.  It is available with SMA female RF connectors.  The attenuator has seven individually controlled attenuation steps:  0.5dB, 1dB, 2dB, 4dB, 8dB, 16dB, and 31.5dB.

TTL Control
Each of the attenuation steps has a corresponding TTL control line.  See the outline drawing for the control pinout.  TTL high will turn on an attenuation step.  TTL low will turn off an attenuation step.  Use multiple control lines simultaneously to set combinational attenuation values.  To activate the 7dB setting, the 1dB/2dB/4dB control lines must all be TTL high.  To activate the 17.5dB setting, the 0.5/1dB/16dB control lines must be TTL high.  To set the attenuator to the insertion loss state (i.e. 0dB setting), all control lines must be set to TTL low.

Additional information

Connector Type

SMA Female
