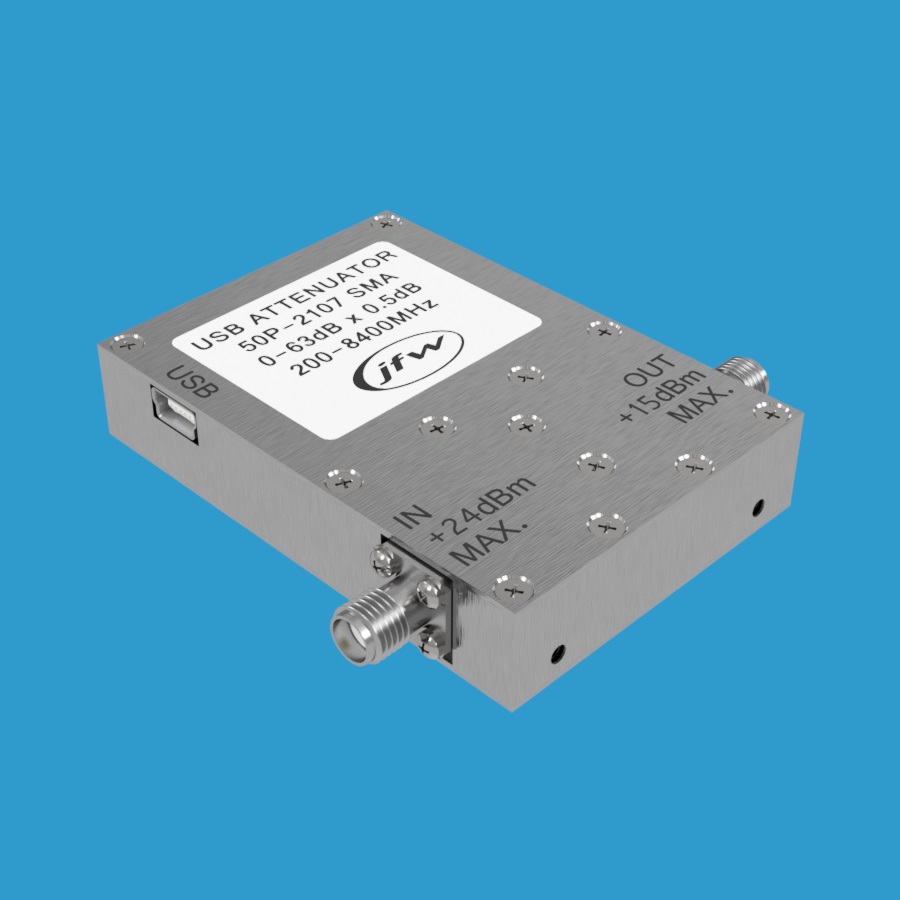

USB Attenuator 0.2-8 GHz | 0-63dB x 0.5dB | 50P-2107

USB Attenuator 0.2-8.4 GHz 0-63dB x 0.5dB | 50P-2107

JFW Model #: 50P-2107
Type:  Solid-State Programmable Attenuator
Control: USB controlled
Impedance: 50 Ohm
dB Total: 63 dB
dB Step: 0.5 dB
Frequency Range: 200-8400 MHz
Switching Speed: 1 uS
RF Input Power: +24 dBm (Input), + 15 dBm (Output)
RF Connectors: SMA
Documentation: Data Sheet | Drawing

Categories: 50 Ohm Solid-State Programmable Attenuators (USB), Programmable Attenuators
  • Description
  • Additional information

Description

Model 50P-2107 is a 50 Ohm solid-state programmable attenuator with attenuation range 0 to 63dB by 0.5dB steps. The unit operates bi-directionally. The unit is labeled “input” and “output” because the RF power rating is different for each port. The input port is rated for +24 dBm. The output port is rated for +15 dBm. It is available with SMA female RF connectors.

Additional information

Connector Type

SMA Female
