You are here: Home1 / Shop2 / Manually Variable Attenuators3 / Pushbutton Attenuators4 / 50 Ohm Pushbutton Attenuator DC-750 MHz 0-45.5dB x 0.5dB | 50B-002

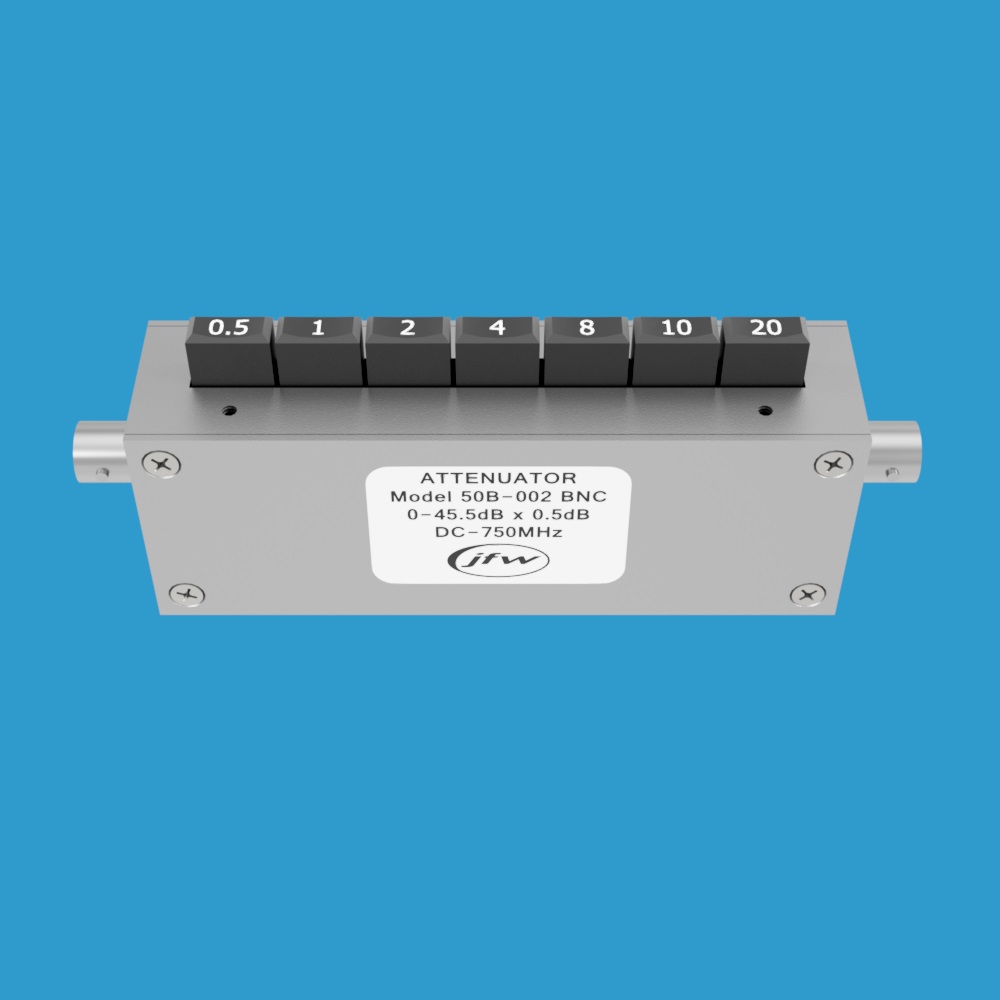

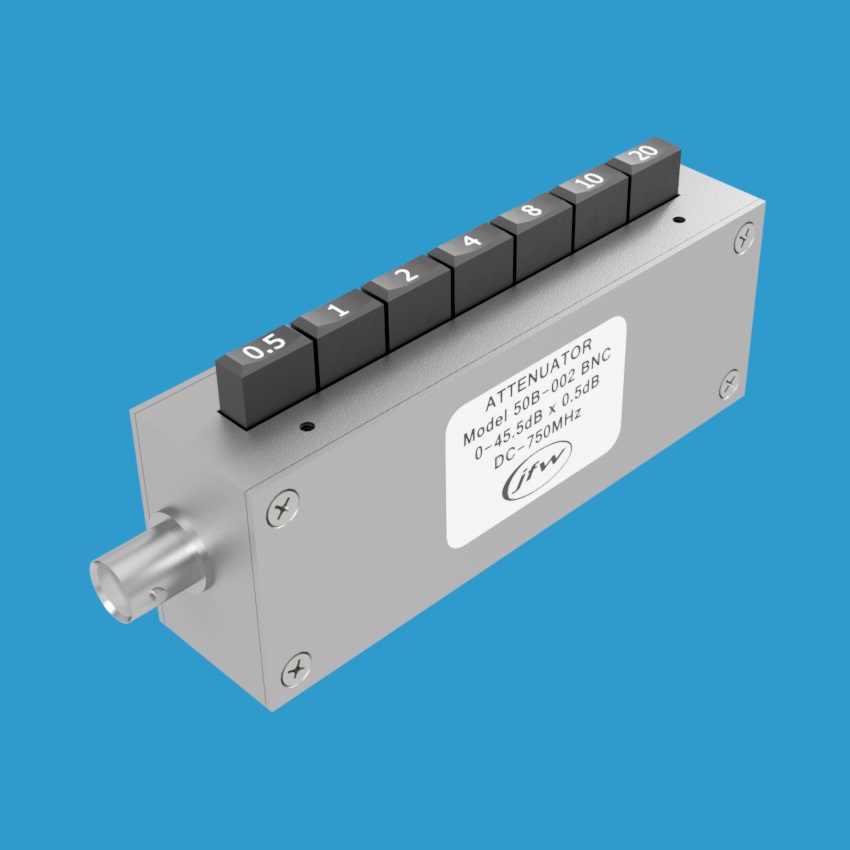

JFW model 50B-002 BNC pushbutton attenuator

50 Ohm Pushbutton Attenuator DC-750 MHz 0-45.5dB x 0.5dB | 50B-002

JFW Model #: 50B-002
Type: Manually variable attenuator
Impedance: 50 Ohm
dB Total: 45.5 dB
dB Step: 0.5 dB
Frequency Range: DC-750 MHz
RF Input Power: 1 Watt
RF Connectors: BNC
Documentation: Data Sheet | Drawing

Categories: Manually Variable Attenuators, Pushbutton Attenuators
  • Description
  • Additional information

Description

Model 50B-002 is a 50 Ohm pushbutton attenuator with attenuation range 0 to 45.5dB by 0.5dB steps.  It operates DC-750 MHz and is rated for 1 Watt average of RF input power.  Each pushbutton controls an attenuation step.  This model has 7 pushbuttons total:  0.5dB, 1dB, 2dB, 4dB, 8dB, 10dB, and 20dB.  Engage multiple pushbuttons simultaneously to achieve combinational attenuation values.  This manual attenuator is available with BNC female 50 Ohm coaxial RF connectors.  The attenuator has four mounting holes to allow for panel mounting.

Additional information

Connector Type

BNC Female
