1 Watt Fixed Attenuator | 50F-XXX

Description

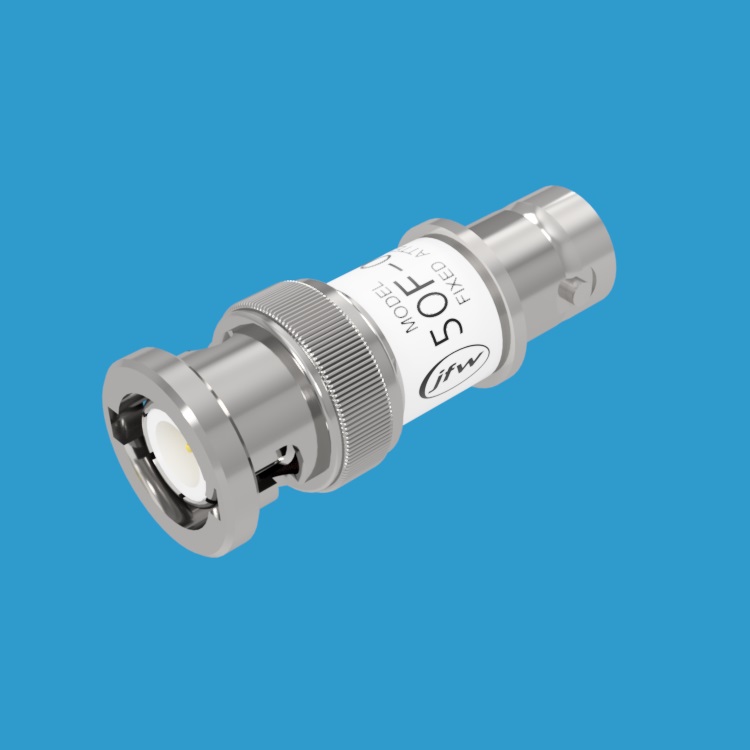

Model 50F-xxx is a 50 Ohm coaxial fixed attenuator rated at 1 Watt maximum RF input power.  For dB values 1-20dB the unit operates DC-2200MHz.  For dB values 21-30dB the unit operates at DC-1000MHz.

For model 50F-XXX, replace the XXX with the desired attenuation value and add the RF connector type at the end to create the full model number.

Example Model Numbers:

50F-001 N   (1dB with N male/female)
50F-002 N   (2dB with N male/female)
50F-003 N   (3dB with N male/female)
50F-004 SMA   (4dB with SMA male/female)
50F-005 SMA   (5dB with SMA male/female)
50F-006 SMA   (6dB with SMA male/female)
50F-007 SMA   (7dB with SMA male/female)
50F-008 SMA   (8dB with SMA male/female)
50F-009 TNC   (9dB with TNC male/female)
50F-010 TNC   (10dB with TNC male/female)
50F-011 TNC   (11dB with TNC male/female)
50F-012 TNC   (12dB with TNC male/female)
50F-013 TNC   (13dB with TNC male/female)
50F-014 TNC   (14dB with TNC male/female)
50F-015 TNC   (15dB with TNC male/female)
50F-016 BNC   (16dB with BNC male/female)
50F-017 BNC   (17dB with BNC male/female)
50F-018 BNC   (18dB with BNC male/female)
50F-019 BNC   (19dB with BNC male/female)
50F-020 BNC   (20dB with BNC male/female)
50F-021 BNC   (21dB with BNC male/female)
50F-022 BNC   (22dB with BNC male/female)
50F-023 BNC   (23dB with BNC male/female)
50F-024 BNC   (24dB with BNC male/female)
50F-025 BNC   (25dB with BNC male/female)
50F-026 BNC   (26dB with BNC male/female)
50F-027 BNC   (27dB with BNC male/female)
50F-028 BNC   (28dB with BNC male/female)
50F-029 BNC   (29dB with BNC male/female)
50F-030 BNC   (30dB with BNC male/female)

Non-standard RF connector configurations are available upon request:

50F-006 N M/M   (N male/male)
50F-010 SMA M/M   (SMA male/male)
50F-020 SMA F/F   (SMA female/female)
