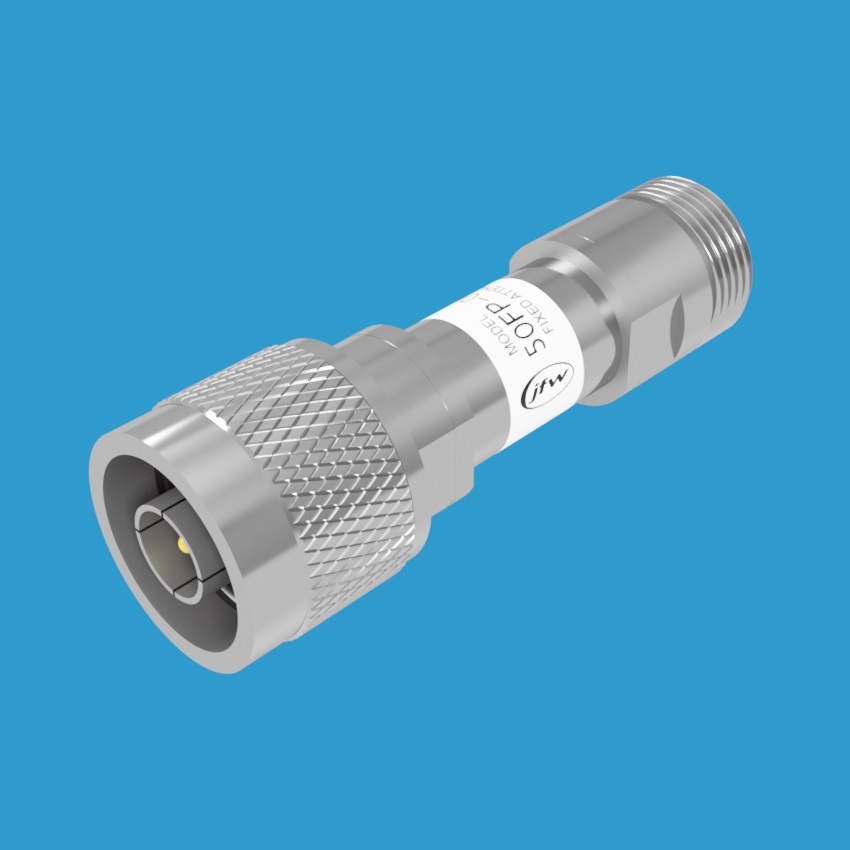

Model 50FP-XXX-H4 N fixed attenuator 50 Ohm 2 Watts N male/female

2 Watt Fixed Attenuator DC-4GHz | 50FP-XXX-H4

JFW Model #: 50FP-XXX-H4
Impedance:  50 Ohm
Frequency Range: DC-4 GHz
RF Input Power: 2 Watts
Attenuation Values: 1-30 dB
RF Connectors: BNC, N, SMA, TNC
Documentation: Data Sheet | Drawing (BNC) | Drawing (N) | Drawing (SMA) | Drawing (TNC)

If Connector Type is Other, please specify in REMARKS field of the Request a Quote form.



Clear
Categories: 50 Ohm Fixed Attenuators (0.5 to 2 Watts), Fixed Attenuators
  • Description
  • Additional information

Description

Model 50FP-xxx-H4 is a 50 Ohm coaxial fixed attenuator rated at 2 Watts maximum RF input power and operates DC-4 GHz.  Available dB values from 1dB to 30dB.

For model 50FP-XXX-H4, replace the XXX with the desired attenuation value and add the RF connector type at the end to create the full model number.

Example Model Numbers:

50FP-001-H4 BNC   (1dB with BNC male/female)
50FP-002-H4 BNC   (2dB with BNC male/female)
50FP-003-H4 BNC   (3dB with BNC male/female)
50FP-004-H4 BNC   (4dB with BNC male/female)
50FP-005-H4 BNC   (5dB with BNC male/female)

50FP-006-H4 N   (6dB with N male/female)
50FP-007-H4 N   (7dB with N male/female)
50FP-008-H4 N   (8dB with N male/female)
50FP-009-H4 N   (9dB with N male/female)
50FP-010-H4 N   (10dB with N male/female)

50FP-011-H4 TNC   (11dB with TNC male/female)
50FP-012-H4 TNC   (12dB with TNC male/female)
50FP-013-H4 TNC   (13dB with TNC male/female)
50FP-014-H4 TNC   (14dB with TNC male/female)
50FP-015-H4 TNC   (15dB with TNC male/female)

50FP-016-H4 SMA   (16dB with SMA male/female)
50FP-017-H4 SMA   (17dB with SMA male/female)
50FP-018-H4 SMA   (18dB with SMA male/female)
50FP-019-H4 SMA   (19dB with SMA male/female)
50FP-020-H4 SMA   (20dB with SMA male/female)
50FP-021-H4 SMA   (21dB with SMA male/female)
50FP-022-H4 SMA   (22dB with SMA male/female)
50FP-023-H4 SMA   (23dB with SMA male/female)
50FP-024-H4 SMA   (24dB with SMA male/female)
50FP-025-H4 SMA   (25dB with SMA male/female)

50FP-026-H4 4.3-10.0   (26dB with 4.3-10.0 male/female)
50FP-027-H4 4.3-10.0   (27dB with 4.3-10.0 male/female)
50FP-028-H4 4.3-10.0   (28dB with 4.3-10.0 male/female)
50FP-029-H4 4.3-10.0   (29dB with 4.3-10.0 male/female)
50FP-030-H4 4.3-10.0   (30dB with 4.3-10.0 male/female)

Non-standard and mixed RF connector configurations are available upon request:

50FP-003-H4 SMA F/F   (SMA female/female)
50FP-006-H4 SMA M/M   (SMA male/male)
50FP-010-H4 BNC M/SMA F   (BNC male/SMA female)
50FP-015-H4 BNC F/SMA F   (BNC female/SMA female)
50FP-020-H4 4.3-10.0 M/N F   (4.3-10.0 male/N female)

Additional information

Attenuation Value

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30

Connector Type

BNC, N, Other, SMA, TNC
