You are here: Home1 / Shop2 / Fixed Attenuators3 / 50 Ohm Fixed Attenuators (0.5 to 2 Watts)4 / 2 Watt Fixed Attenuator DC-6GHz | 50FP-XXX-H6

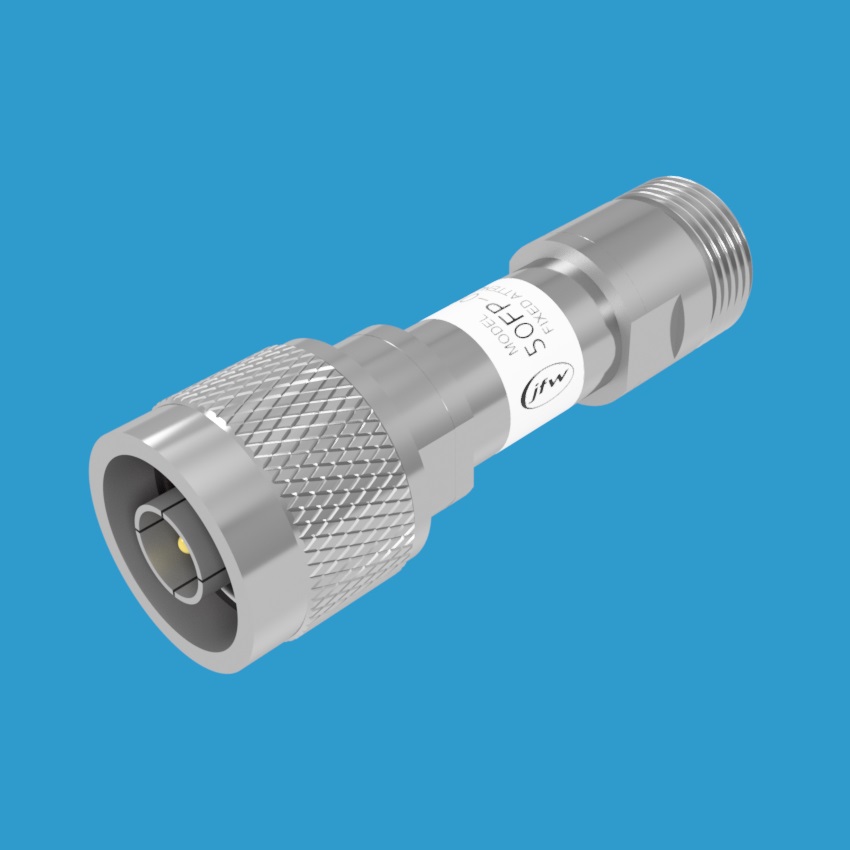

Model 50FP-XXX-H6 N fixed attenuator 50 Ohm 2 Watts N male/female

2 Watt Fixed Attenuator DC-6GHz | 50FP-XXX-H6

JFW Model #: 50FP-XXX-H6
Impedance: 50 Ohm
Frequency Range: DC-6 GHz
RF Input Power: 2 Watts
Attenuation Values: 1-20 dB
RF Connectors: N, TNC, SMA, 4.3/10.0
Documentation: Data Sheet | Drawing (N) | Drawing (SMA) | Drawing (TNC) | Drawing (4.3-10)

If Connector Type is Other, please specify in REMARKS field of the Request a Quote form.



Clear
Categories: 50 Ohm Fixed Attenuators (0.5 to 2 Watts), Fixed Attenuators
  • Description
  • Additional information

Description

Model 50FP-xxx-H6 is a 50 Ohm coaxial fixed attenuator rated at 2 Watts maximum RF input power and operates DC-6 GHz.  Available dB values from 1dB to 20dB.

For model 50FP-XXX-H6, replace the XXX with the desired attenuation value and add the RF connector type at the end to create the full model number.

Example Model Numbers:

50FP-001-H6 N   (1dB with N male/female)
50FP-002-H6 N   (2dB with N male/female)
50FP-003-H6 N   (3dB with N male/female)
50FP-004-H6 N   (4dB with N male/female)
50FP-005-H6 N   (5dB with N male/female)

50FP-006-H6 TNC   (6dB with N male/female)
50FP-007-H6 TNC   (7dB with N male/female)
50FP-008-H6 TNC   (8dB with N male/female)
50FP-009-H6 TNC   (9dB with N male/female)
50FP-010-H6 TNC   (10dB with N male/female)

50FP-011-H6 SMA   (11dB with SMA male/female)
50FP-012-H6 SMA   (12dB with SMA male/female)
50FP-013-H6 SMA   (13dB with SMA male/female)
50FP-014-H6 SMA   (14dB with SMA male/female)
50FP-015-H6 SMA   (15dB with SMA male/female)

50FP-016-H6 4.3-10.0   (16dB with 4.3-10.0 male/female)
50FP-017-H6 4.3-10.0   (17dB with 4.3-10.0 male/female)
50FP-018-H6 4.3-10.0   (18dB with 4.3-10.0 male/female)
50FP-019-H6 4.3-10.0   (19dB with 4.3-10.0 male/female)
50FP-020-H6 4.3-10.0   (20dB with 4.3-10.0 male/female)

Non-standard and mixed RF connector configurations are available upon request:

50FP-003-H6 SMA F/F   (SMA female/female)
50FP-006-H6 SMA M/M   (SMA male/male)
50FP-010-H6 N M/SMA F   (N male/SMA female)
50FP-015-H6 N F/SMA F   (N female/SMA female)
50FP-020-H6 4.3-10.0 M/N F   (4.3-10.0 male/N female)

Additional information

Attenuation Value

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20

Connector Type

4.3/10, N, Other, SMA, TNC
