You are here: Home1 / Shop2 / Programmable Attenuators3 / 50 Ohm Solid-State Programmable Attenuators (TTL)4 / Programmable Attenuator 30-3000 MHz 0-31.75dB x 0.25dB | 50P-1867
Programmable Attenuator | TTL control | SMA

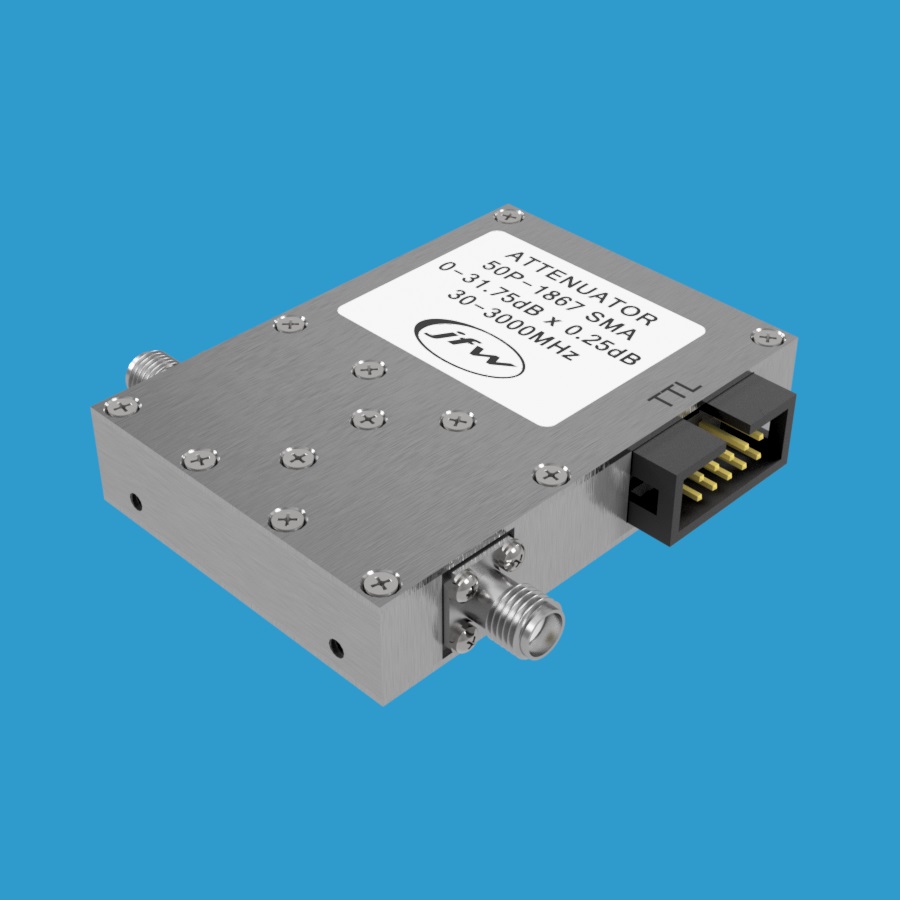

Programmable Attenuator 30-3000 MHz 0-31.75dB x 0.25dB | 50P-1867

JFW Model #: 50P-1867
Type:  Solid-State Programmable Attenuator
Impedance: 50 Ohm
dB Total: 31.75 dB
dB Step: 0.25 dB
Frequency Range: 30-3000 MHz
Switching Speed: 3 uS
RF Input Power: +27 dBm*
Control: TTL
RF Connectors: SMA
Documentation: Data Sheet | Drawing

* Units shipped before 11/22/2017 (date code 1747) are only rated at +20dBm.  The JFW date code is a four digit code (YYWW) that follows the six digit serial number.  Example:  1908 = 2019, 8th week

Categories: 50 Ohm Solid-State Programmable Attenuators (TTL), Programmable Attenuators
  • Description
  • Additional information

Description

Model 50P-1867 is a 50 Ohm solid-state programmable attenuator with attenuation range 0 to 31.75dB by 0.25dB steps.  It operates 30 MHz to 3 GHz and is rated for +27 dBm of RF input power.  This step attenuator is available with SMA female coaxial RF connectors.  The attenuator has seven individually controlled steps:  0.25dB, 0.5dB, 1dB, 2dB, 4dB, 8dB, and 16dB.

TTL Controlled
Each of the attenuation steps has a corresponding TTL control line.  There are seven TTL control lines for this model.  See the outline drawing for the control pinout.  TTL high will turn on an attenuation step.  TTL low will turn off an attenuation step.  Use multiple control lines simultaneously to set combinational attenuation values.  To activate the 7.25dB setting, the 0.25dB/1dB/2dB/4dB control lines must all be TTL high.  To activate the 18dB setting, the 2dB/16dB control lines must be TTL high.  To set the attenuator to the insertion loss state (i.e. 0dB setting), all control lines must be set to TTL low.

Recommended Accessories:

016-306-XX (DC cable, 10 pin female to open wires)

016-168-XX (DC cable, 10 pin female to 10 pin female)

Additional information

Connector Type

SMA Female
