You are here: Home1 / Shop2 / Reactive & Resistive Power Divider/Combiner3 / 50 Ohm Reactive Divider/Combiner (High Power)4 / 4-Way Power Divider/Combiner 700-2700 MHz 100 Watt | 50PD-682

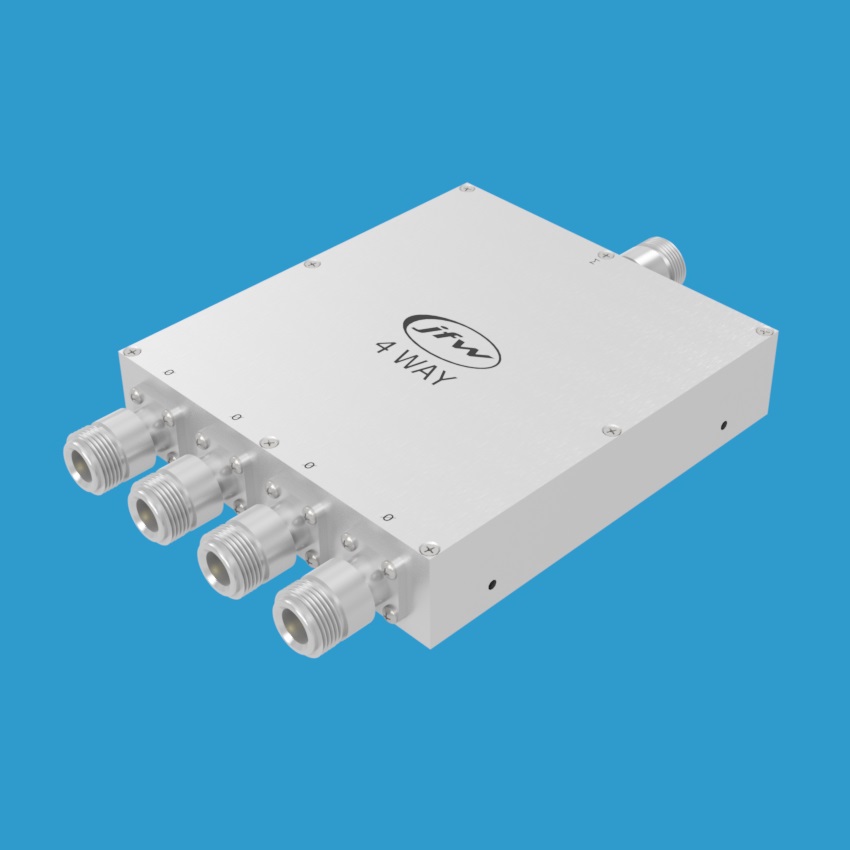

JFW model 50PD-682 high power 4way reactive power divider/combiner with 50 Ohm N female connectors

4-Way Power Divider/Combiner 700-2700 MHz 100 Watt | 50PD-682

JFW Model #: 50PD-682
Impedance: 50 Ohm
Configuration: 4-Way power divider/combiner
Frequency Range: 700-2700 MHz
RF Input Power: 100 Watts (divider port), 25 Watts (combiner ports)
RF Connectors: N, SMA, TNC female
Documentation: Data Sheet | Drawing

Clear
Categories: 50 Ohm Reactive Divider/Combiner (High Power), Reactive & Resistive Power Divider/Combiner
  • Description
  • Additional information

Description

Model 50PD-682 is a 50 Ohm high power reactive 4-Way power divider/combiner that operates from 700-2700 MHz.  It uses the reactive Wilkinson splitter design which is ideal to fan-in or fan-out RF signals with minimum loss.  The divider port is rated for 100 Watts RF input power.  Each combiner port is rated for 25 Watts of RF input power.  It is available with N, SMA or TNC coaxial RF connectors.  It has one divider port and four combiner ports.  Any signal from divider port to combiner port will have insertion loss (i.e. 6 dB nominal loss).  Any signal from a combiner port to another combiner port will have isolation (i.e. minimum of 20 dB loss).

See our Power Divider Application Note for functionality differences between resistive type and reactive type power dividers.  Also examined are the differences in construction, insertion loss, and isolation between a resistive divider, a toroidal divider, and a Wilkinson divider.

Additional information

Weight 0.56 lbs
Connector Type

N Female, SMA Female, TNC Female
