You are here: Home1 / Shop2 / Manually Variable Attenuators3 / 50 Ohm Single Rotor Manual Attenuators4 / Manual Attenuator DC-2.7GHz 0-70dB x 10dB | 50R-246

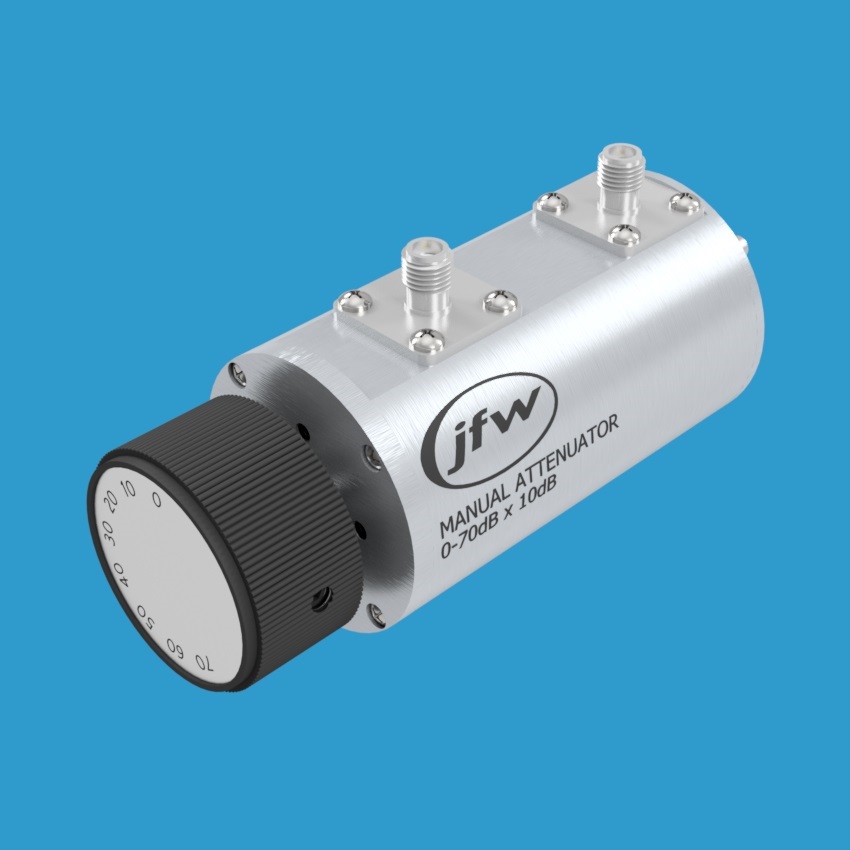

50 Ohm manual attenuator with BNC female and attenuation range 0 to 70dB by 10dB steps

Manual Attenuator DC-2.7GHz 0-70dB x 10dB | 50R-246

JFW Model #: 50R-246
Type: Manually variable attenuator
Impedance: 50 Ohm
dB Total: 70 dB
dB Step: 10 dB
Frequency Range: DC-2700 MHz
RF Input Power: 2 Watts
RF Connectors: SMA
Documentation: Data Sheet | Drawing | Knob/Mounting

Categories: 50 Ohm Single Rotor Manual Attenuators, Manually Variable Attenuators
  • Description
  • Additional information

Description

Model 50R-246 is a 50 Ohm manual step attenuator with attenuation range 0 to 70dB by 10dB steps.  It operates DC-2700 MHz and is rated for 2 Watts average RF power.   It is a single rotary attenuator (i.e. one manual knob).  It is available with 50 Ohm SMA female coaxial RF connectors.  The attenuator has four mounting holes in the front plate to allow for panel mounting.

Additional information

Connector Type

SMA Female
