You are here: Home1 / Shop2 / RF Switches3 / 50 Ohm Solid-State RF Switches (Reflective)4 / 1P2T RF Switch 20-4300 MHz | 50S-1163
50 Ohm reflective 1P2T solid-state RF switch with SMA female

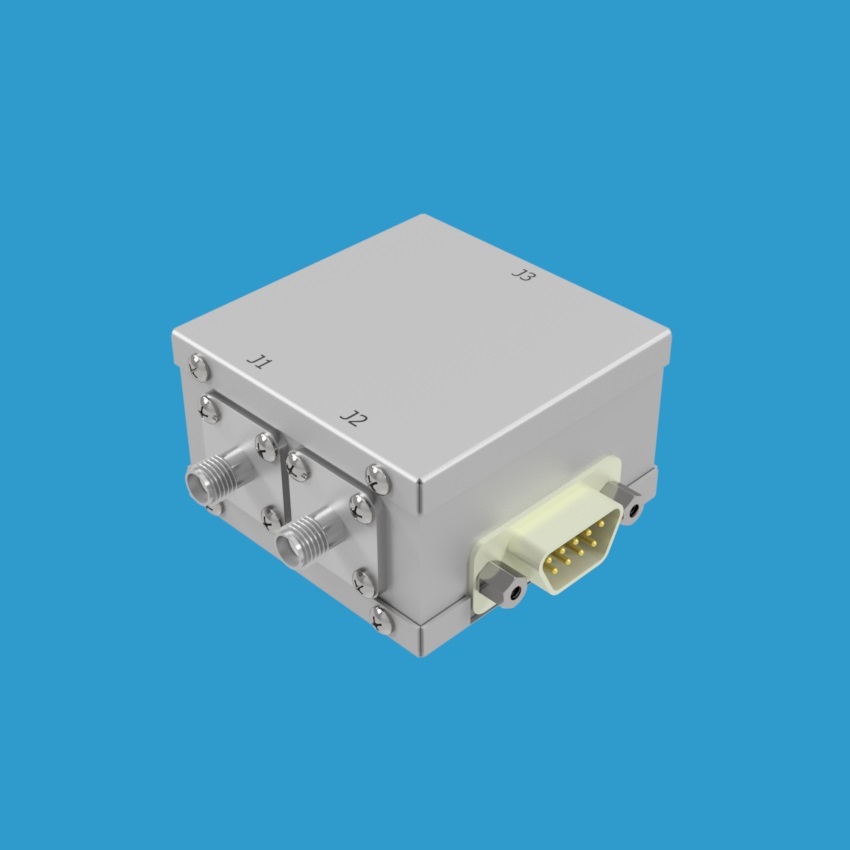

1P2T RF Switch 20-4300 MHz | 50S-1163

JFW Model #: 50S-1163
Impedance: 50 Ohm
Configuration: 1P2T solid-state RF switch
Type: Reflective
Frequency Start: 20-4300 MHz
Switching Speed: 20 uS
RF Connectors: SMA female
Control Logic: TTL
Documentation: Data Sheet | Drawing

Categories: 50 Ohm Solid-State RF Switches (Reflective), RF Switches
  • Description

Description

Model 50S-1163 is a 50 Ohm solid-state 1P2T RF switch operating 20-4300 MHz.  It is rated for +20dBm of RF input power at 20 MHz and +30dBm (i.e. 1 Watt) at 100 MHz and above.  This RF switch is reflective type.  The unused port will set to a reflective setting.  It is available with 50 Ohm SMA female RF connectors.  The 1P2T RF switch has two control lines.  Each control line is activated with TTL signal levels.
