You are here: Home1 / Shop2 / RF Switches3 / 50 Ohm Solid-State RF Switches (Absorptive)4 / 1P5T RF Switch 20-4300 MHz | 50S-1221

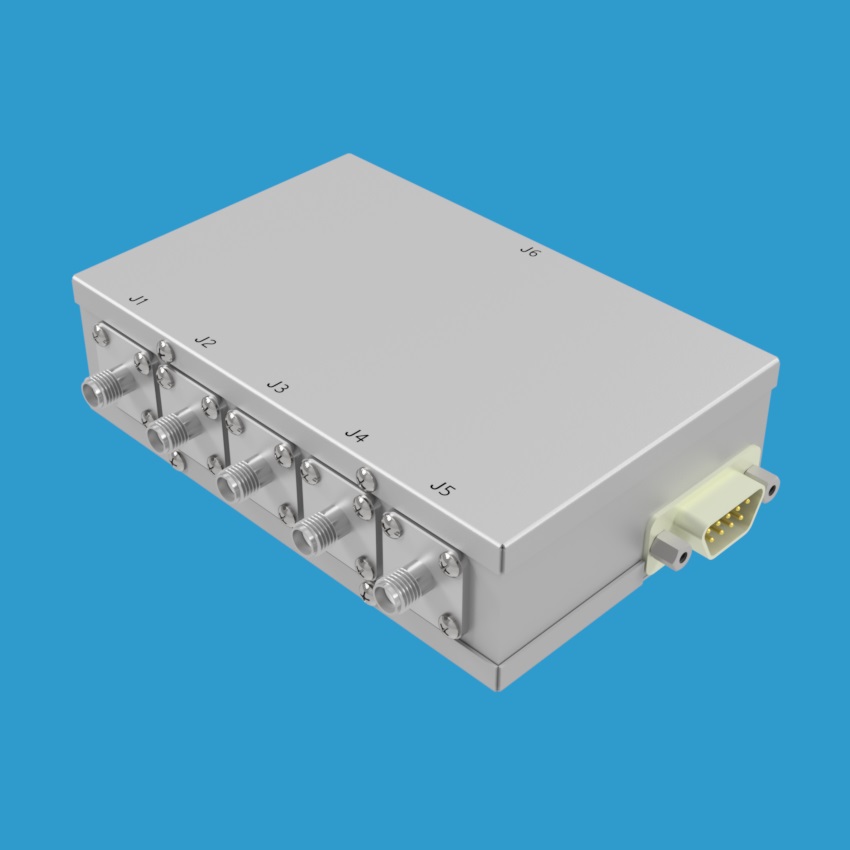

50 Ohm absorptive 1P5T solid-state RF switch with SMA female

1P5T RF Switch 20-4300 MHz | 50S-1221

JFW Model #: 50S-1221
Impedance: 50 Ohm
Configuration: 1P5T solid-state RF switch
Type: Absorptive (i.e. Self-Terminating)
Frequency Range: 20-4300 MHz
Switching Speed: 10 uS
RF Connectors: N, SMA
Control Logic: TTL
Documentation: Data Sheet | Drawing

Categories: 50 Ohm Solid-State RF Switches (Absorptive), RF Switches
  • Description
  • Additional information

Description

Model 50S-1221 is a 50 Ohm solid-state 1P5T RF switch operating 20-4300 MHz.  It is rated for +20dBm of RF input power at 20 MHz and +30dBm (i.e. 1 Watt) at 100 MHz and above.  This RF switch is absorptive type (i.e. self-terminating).  The unused ports will self-terminate at 50 Ohm impedance.  It is available with 50 Ohm RF connectors: SMA female or N female.  This 1P5T RF switch has five control lines.  Each control line is activated with TTL signal levels.

Additional information

Connector Type

SMA Female
