Description

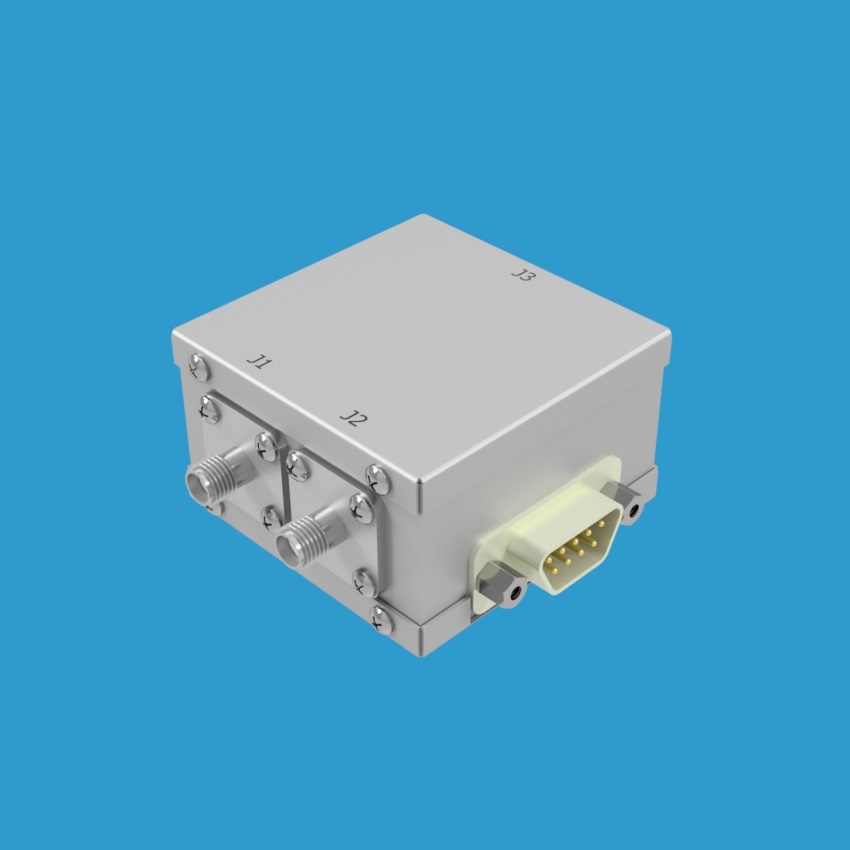

Model 50S-1970 is a 50 Ohm solid-state 1P2T RF switch operating 5-3000 MHz. It is rated for +10dBm of RF input power at 5 MHz and +30dBm (i.e. 1 Watt) at 100 MHz and above. This RF switch is absorptive type (i.e. self-terminating). The unused port will self-terminate at 50 Ohm impedance. It is available with 50 Ohm SMA female RF connectors. This 1P2T RF switch has two control lines. Each control line is activated with TTL signal levels.
