You are here: Home1 / Shop2 / RF Switches3 / 50 Ohm Solid-State RF Switches (Absorptive)4 / 1P1T RF Switch 20-8400 MHz | 50S-2178

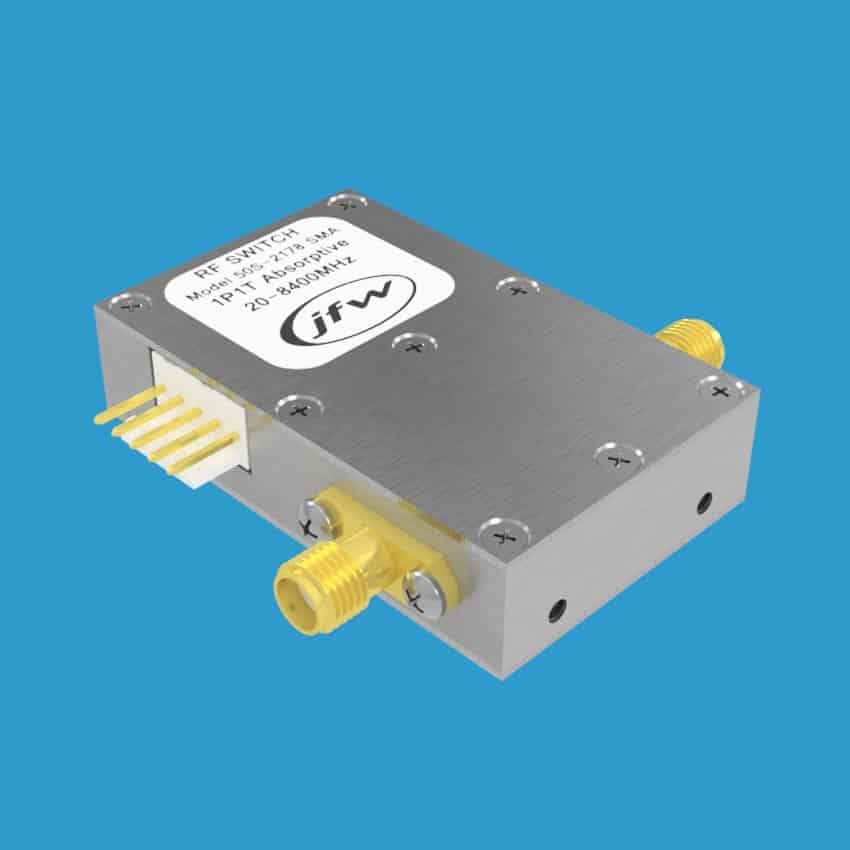

1P1T RF Switch | SMA female | 20-8400MHz | Self-terminating

1P1T RF Switch 20-8400 MHz | 50S-2178

JFW Model #: 50S-2178
Impedance: 50 Ohm
Configuration: 1P1T solid-state RF switch
Type: Absorptive (i.e. Self-terminating)
Frequency Range: 20-8400 MHz
Switching Speed: 10 uS
RF Connectors: SMA female
Control Logic: TTL
Documentation: Data Sheet | Drawing

Categories: 50 Ohm Solid-State RF Switches (Absorptive), RF Switches
  • Description
  • Additional information

Description

Model 50S-2178 is a 50 Ohm solid-state 1P1T RF switch operating 20-8400 MHz rated at +26dBm of RF power.  This RF switch is absorptive type (i.e. self-terminating).  Both ports will set to 50 Ohm impedance when the 1P1T is in the OFF setting.  It is available with 50 Ohm SMA female RF connectors.  The 1P1T RF switch has one control line.  The control line is activated with TTL signal levels.

Additional information

Connector Type

SMA Female
