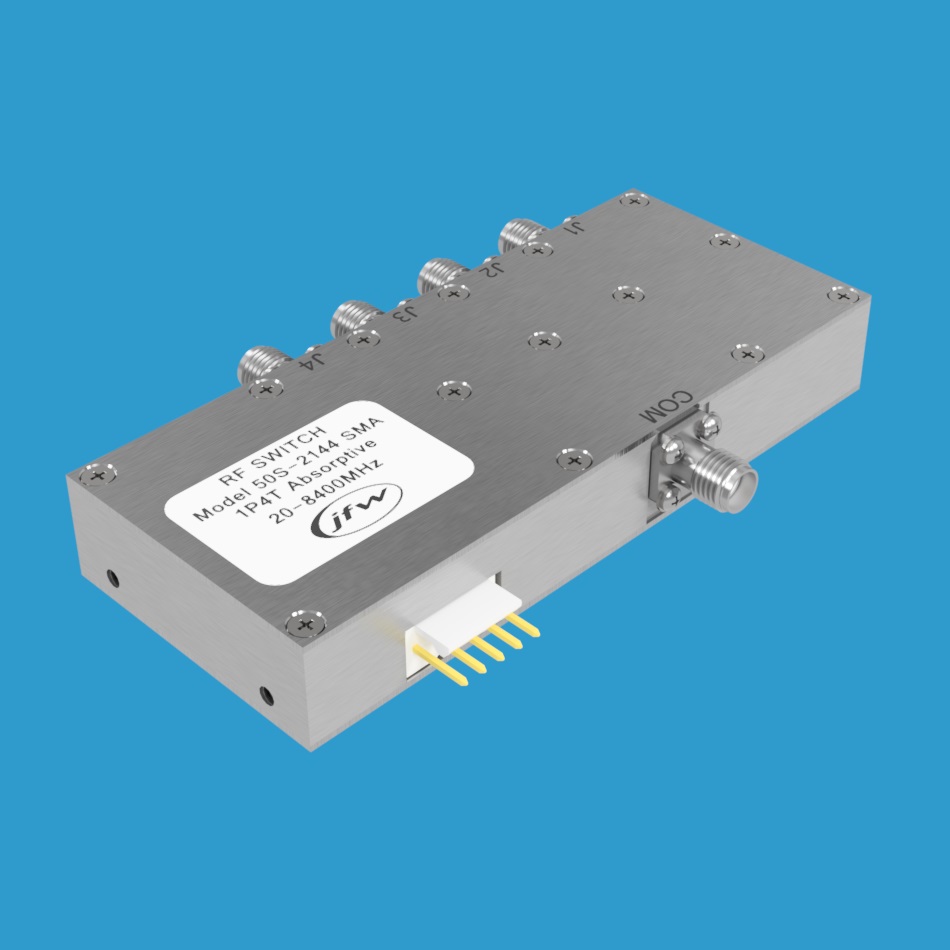

1P4T RF Switch 20-8000 MHz | 50S-2144

1P4T RF Switch 20-8400 MHz | 50S-2144

JFW Model #: 50S-2144
Impedance: 50 Ohm
Configuration: 1P4T Solid-state RF switch
Type: Absorptive (i.e. Self-Terminating)
Frequency Range: 20-8400 MHz
Switching Speed: 10 uS
RF Connectors: SMA female
Control Logic: TTL
Documentation: Data Sheet | Drawing

Categories: 50 Ohm Solid-State RF Switches (Absorptive), RF Switches
  • Description
  • Additional information

Description

Model 50S-2144 is a solid-state 1P4T RF switch operating 20-8400 MHz. It is rated for +26dBm input power. Unused ports will self-terminate at 50 Ohms. For example: if path COM-to-J1 is active, then ports J2/J3/J4 will self-terminate at 50 Ohms. It is available with 50 Ohm SMA female RF connectors. This RF switch is controlled via TTL control lines. The TTL logic chart is listed on the specification sheet.

Additional information

Connector Type

SMA Female
