1P8T RF Switch 5-3000 MHz | 75S-400

1P8T RF Switch 5-3000 MHz | 75S-400

JFW Model #: 75S-400
Impedance: 75 Ohm
Switch Configuration: 1P8T solid-state RF switch
Switch Type: Absorptive (i.e. Self-terminating)
Frequency Range: 5-3000 MHz
Control Logic: TTL
DC Supply: +12 Vdc
Documentation: Data Sheet | Drawing

Categories: 75 Ohm Solid-State RF Switches, RF Switches
  • Description
  • Additional information

Description

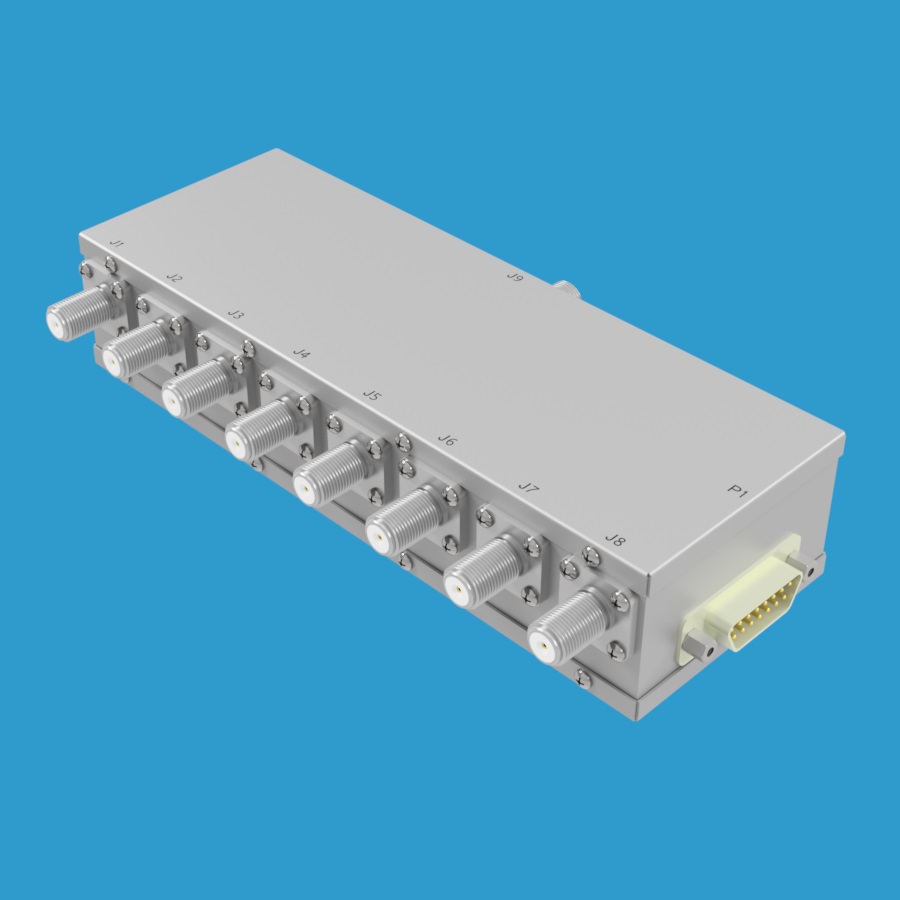

Model 75S-400 is a 75 Ohm solid-state 1P8T RF switch operating 5-3000MHz.  This model is absorptive (i.e. self-terminating).  The unused ports will self-terminate at 75 Ohm impedance.  It is available with F female RF connectors.  The 1P8T RF switch has eight control lines.  Each control line is activated with TTL signal levels.
