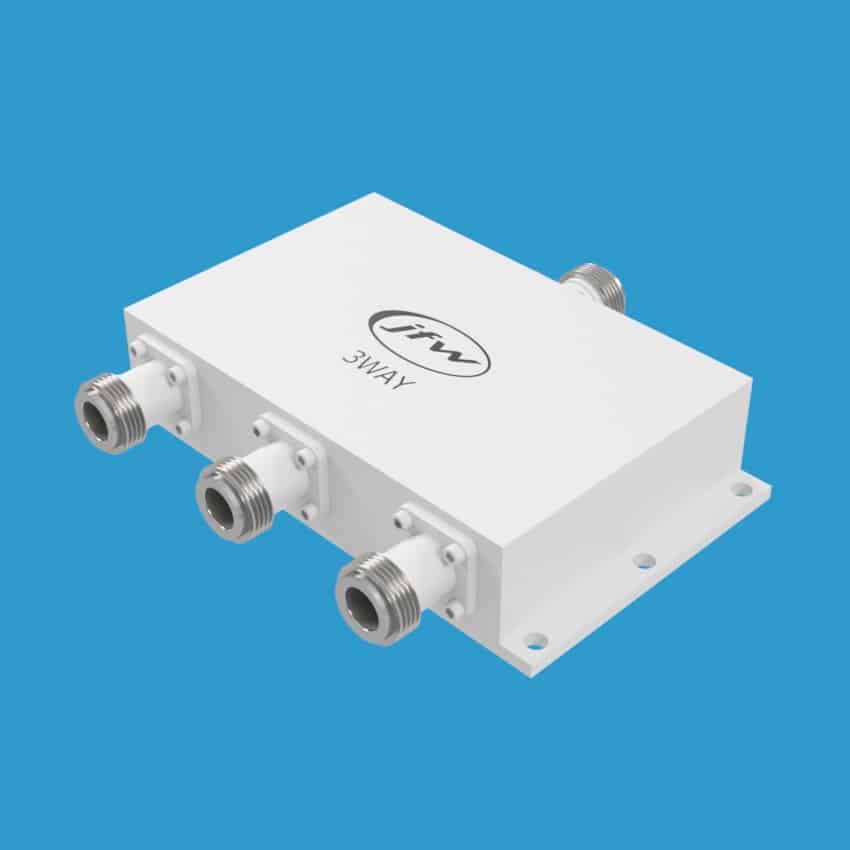

3-Way Power Divider/Combiner 0.8-2.4 GHz | 50PD-622 N

3-Way Power Divider/Combiner 0.8-2.4 GHz | 50PD-622 N

JFW Model #: 50PD-622
Impedance: 50 Ohm
Configuration: 3-Way power divider/combiner
Frequency Range: 800-2400 MHz
RF Input Power: 5 Watts
RF Connectors: N female
Documentation: Data Sheet | Drawing

Categories: 50 Ohm Reactive Divider/Combiner (Low Power), Reactive & Resistive Power Divider/Combiner
  • Description
  • Additional information

Description

Model 50PD-622 N is a 50 Ohm reactive 3-Way power divider/combiner that operates 800-2400 MHz. It uses a reactive Wilkinson splitter design which is ideal when the application is to fan-in or fan-out RF signals with minimum loss. It has one divider port and three combiner ports. Any signal from divider port to combiner port will have insertion loss (i.e. 4.8 dB nominal loss). Any RF signal from a combiner port to another combiner port will have isolation (i.e. 18 dB nominal loss).

Additional information

Weight 0.56 lbs
Connector Type

N Female
