You are here: Home1 / Shop2 / Test Systems3 / Attenuator Assemblies4 / Assembly with 4 Attenuators 5-1000 MHz | 0-63dB x 1dB | 75PA-090

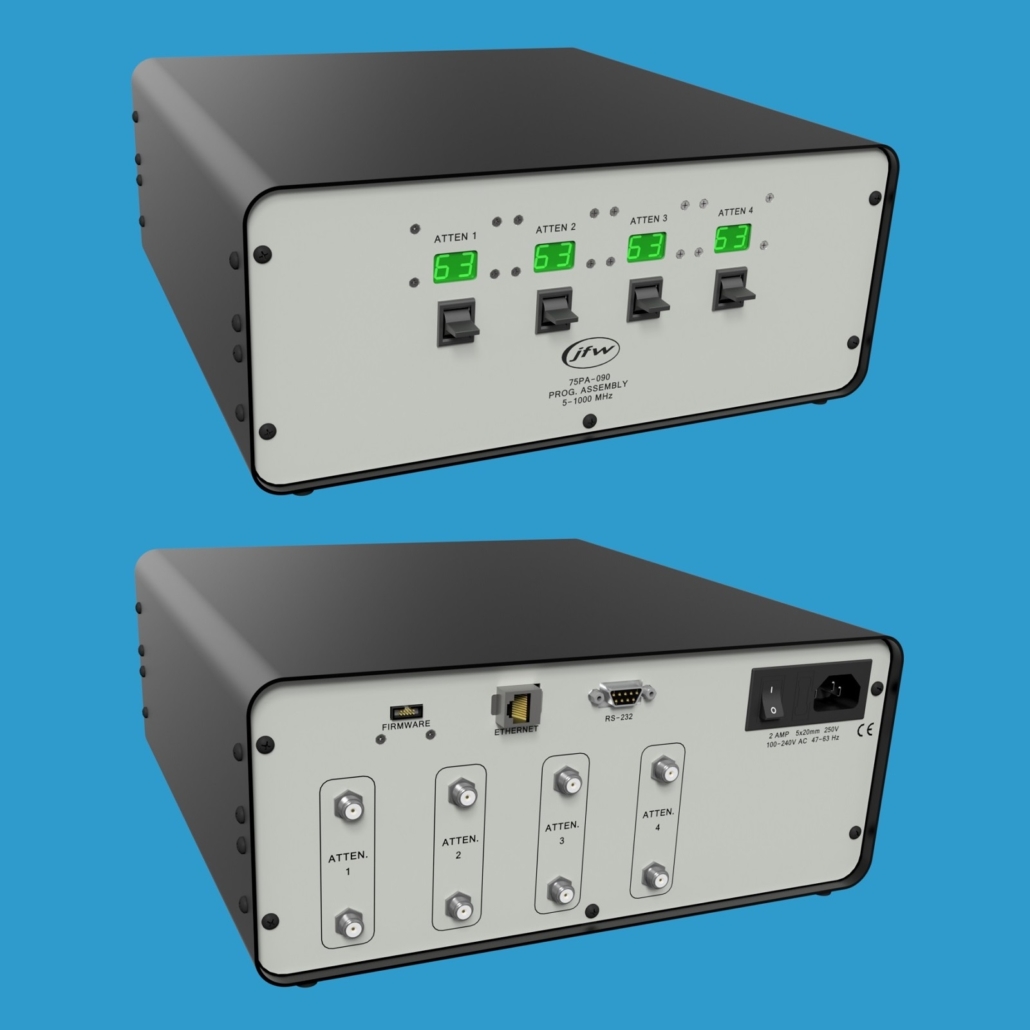

75PA-090 F four channel attenuator assembly with Ethernet and serial remote control

Assembly with 4 Attenuators 5-1000 MHz | 0-63dB x 1dB | 75PA-090

JFW Model #: 75PA-090
Impedance: 75 Ohms
Configuration: 4 Attenuators
Attenuator Type: Solid-state step attenuators
dB Total: 63 dB
dB Step: 1 dB
Frequency Start: 5 MHz
Frequency Stop: 1000 MHz
Manual Control: Momentary Lever Switch
Remote Control: Ethernet, RS-232
Documentation: Data Sheet | Drawing

Categories: Attenuator Assemblies, Benchtop Attenuator Assemblies (75 Ohm), Test Systems
  • Description
  • Additional information

Description

Model 75PA-090 is a 75 Ohm benchtop attenuator assembly containing four solid-state step attenuators.  The attenuators have attenuation range of 0 to 63dB by 1dB steps and operate at 5-1000 MHz.  The attenuators can be controlled manually or remotely.  The attenuation setting for each attenuator is displayed on the front panel.  The displayed attenuation values are updated immediately for each manual set or remote set.  If you run a remote test script you will be able to watch the changing dB values in real time as the script executes.  The attenuator assembly is available with F female 75 Ohm coaxial RF connectors.  The RF connectors are located on the front panel.  The RF connectors are not designated as input/output because the attenuators are bi-directional.

Manual Attenuator Control
On the front panel there are four manual lever switches.  Each lever switch controls an attenuator.  The lever can be used to adjust the attenuation up/down.  The lever is a momentary type switch so you can “tap to step” or “hold to jog”.  The current dB setting for each attenuator is displayed on the front panel directly above its corresponding lever switch.  If there is a remotely connected user that is changing attenuation values, you will see all of those changes displayed on the front panel as they happen.

Remote Attenuator Control
This attenuator assembly can be remotely controlled via an Ethernet connection or a serial connection (i.e. RS-232).  The network interface can be set in either DHCP mode or Fixed Address mode.  We ship all new test systems from the factory in DHCP mode.  A RS-232 connection to the test system is made using a null modem type serial cable.  Baud rates up to 155200 Baud are available.

Remote Command Set
The firmware manual for our latest generation firmware is available for download.  This manual lists all of our remote commands with command syntax and examples.  Our firmware uses simple ASCII formatted remote commands.  If you are connected to a JFW test system and send the HELP command, it will respond back with a list of all remote commands for that specific test system.

Additional information

Connector Type

F Female
