8 x 1 LC Handover Test System 2-8 GHz | 50PA-1241

8 x 1 LC Handover Test System 2-8 GHz | 50PA-1241

JFW Model #: 50PA-1241
Impedance: 50 Ohms
Configuration: 8 x 1 LC Handover System
dB Total: 95 dB
dB Step: 1 dB
Frequency Start: 2 GHz
Frequency Stop: 8 GHz
Manual Control: Display and Keyboard
Remote Control: Ethernet and RS-232
RF Connectors: N or SMA Female
Documentation: Data Sheet | Drawing | Diagram

Clear
Categories: Handover Test Systems, Limited Fan-out Handover Test Systems for Cellular Testing, Test Systems
  • Description
  • Additional information

Description

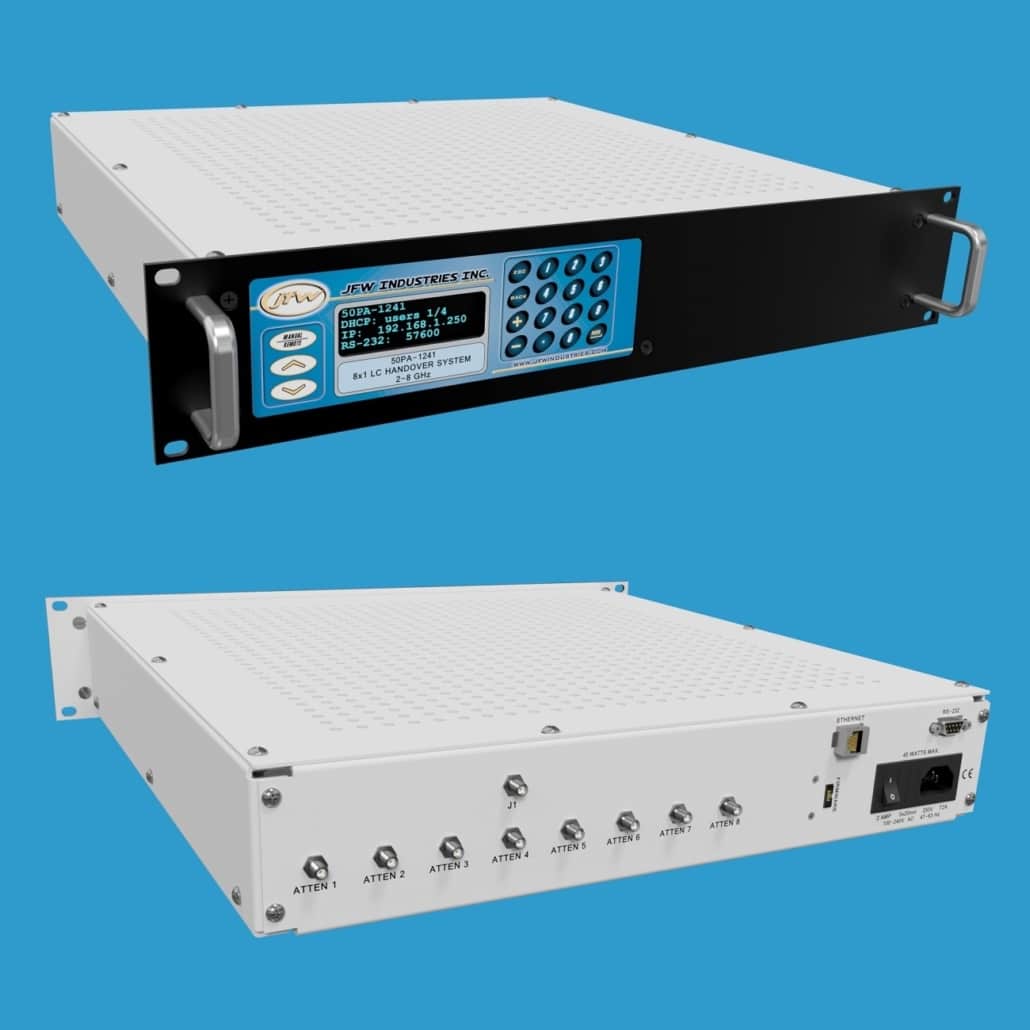

Model 50PA-1241 is an 8 x 1 limited configuration (LC) handover test system for testing multiple wireless devices to a single access point.  As shown on the block diagram the eight ATTEN (attenuator) ports are directly connected to programmable attenuators that have 0-95dB by 1dB step attenuation range.  All ports operate bi-directionally.  The programmable attenuators can be controlled individually or assigned to blocks (i.e. groups).  Individual attenuators can be faded over time using the Fade Attenuator command.  Blocks of attenuators can be faded together over time using the Fade Block command.

Remote Command Set

All remote command syntax and examples can be found in our firmware manual.  Our firmware uses simple ASCII formatted remote commands.  If you are connected to a JFW test system and send the HELP command, it will respond back with a list of all remote commands for that specific test system.

Manual Attenuator Control
The manual control menu allows you to set/read an attenuator, fade an attenuator, or perform a handover using two attenuators.

Remote Attenuator Control
This attenuator assembly can be remotely controlled via an Ethernet connection or a serial connection (i.e. RS-232).  The network settings can be changed manually with the keypad or remotely using the NET remote command. The network interface can be set to either DHCP mode or Fixed Address mode. All new test systems are shipped from the factory in DHCP mode. A RS-232 connection to the test system is made using a null modem type serial cable. Baud rates up to 155200 baud are available. The baud rate can be changed manually with the keypad or remotely with the SERIAL remote command.
