Programmable Attenuator 1-3000 MHz 0-31.75dB x 0.25dB | 50P-2063

Programmable Attenuator 1-3000 MHz 0-31.75dB x 0.25dB | 50P-2063

JFW Model #: 50P-2063
Type:  Solid-State Programmable Attenuator
Impedance: 50 Ohm
dB Total: 31.75 dB
dB Step: 0.25 dB
Frequency Range: 2-3000 MHz
Switching Speed: 3 uS
RF Input Power: +18 dBm (1 MHz), +27 dBm (12-3000 MHz)
Control: TTL
RF Connectors: SMA
Documentation: Data Sheet | Drawing

Categories: 50 Ohm Solid-State Programmable Attenuators (TTL), Programmable Attenuators
  • Description
  • Additional information

Description

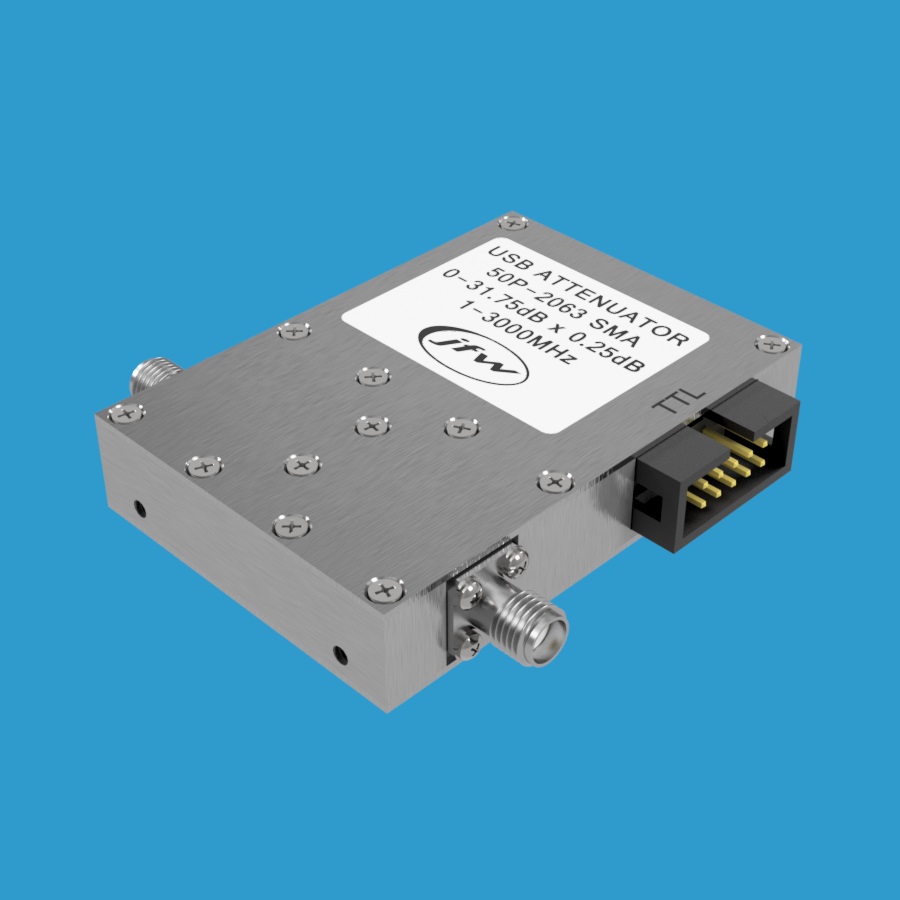

Model 50P-2063 is a 50 Ohm solid-state programmable attenuator with attenuation range 0 to 31.75dB by 0.25dB steps. The unit operates bi-directionally. The input port is rated for +18 dBm @ 1MHz and +27dBm 12-3000MHz. It is available with SMA female RF connectors. The attenuator has seven individually controlled attenuation steps: 0.25dB, 0.5dB, 1dB, 2dB, 4dB, 8dB and 16dB.

TTL Control
Each of the attenuation steps has a corresponding TTL control line. See the outline drawing for the control pinout. TTL high will turn on an attenuation step. TTL low will turn off an attenuation step. Use multiple control lines simultaneously to set combinational attenuation values. To activate the 0.75dB setting, the 0.25dB/0.5dB control lines must all be TTL high. To activate the 1.5dB setting, the 0.5dB/1dB control lines must be TTL high. To set the attenuator to the insertion loss state (i.e. 0dB setting), all control lines must be set to TTL low.
