You are here: Home1 / Shop2 / Reactive & Resistive Power Divider/Combiner3 / 75 Ohm Resistive Divider/Combiner4 / 2-Way Power Divider/Combiner DC-2.2 GHz | 75PD-045

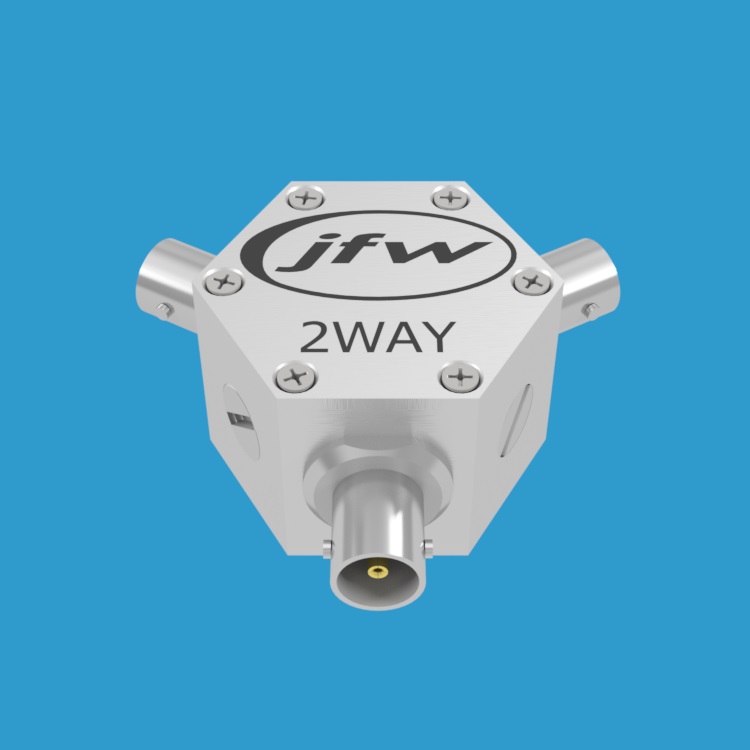

Model 75PD-045 resistive 2way power divider/combiner with 75 Ohm BNC female connectors

2-Way Power Divider/Combiner DC-2.2 GHz | 75PD-045

JFW Model #: 75PD-045
Impedance: 75 Ohm
Configuration: 2-Way resistive divider/combiner
Frequency Range: DC-2200 MHz
RF Input Power: 2 Watts
RF Connectors: BNC, F, N female
Documentation: Data Sheet | Drawing (BNC) | Drawing (F) | Drawing (N)

Clear
Categories: 75 Ohm Resistive Divider/Combiner, Reactive & Resistive Power Divider/Combiner
  • Description
  • Additional information

Description

Model 75PD-045 is a 75 Ohm resistive 2-Way power divider/combiner.  It is available with 75 Ohm BNC, F, or N coaxial RF connectors.  It operates DC-2200 MHz and is rated for 2 Watt of RF input power.  It is constructed in a star configuration.  It has the functionality of a RF hub because every path through the divider/combiner has equal loss.

See our Power Divider Application Note for functionality differences between resistive type and reactive type power dividers.  Also examined are the differences in construction, insertion loss, and isolation between a resistive divider, a toroidal divider, and a Wilkinson divider.

Additional information

Connector Type

BNC Female, BNC Male/BNC Female/BNC Female, F Female, N Female
