75 Ohm Programmable Attenuator for CATV DOCSIS Equipment Testing

April 28, 2017/in Engineering Tips/by JFW Eng Dept

75 Ohm Programmable Attenuator 5-2150MHz

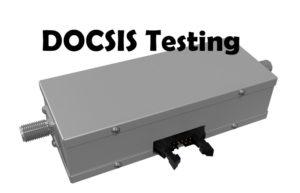

The DOCSIS cable TV standard has created the need for equipment verification testing for frequencies up to 1002MHz, 1218MHz, and 1794MHz. JFW offers a number of products for signal routing, signal combining, or signal fading that cover the DOCSIS specified frequencies. JFW Model #75P-193 F is a 75 Ohm solid state programmable attenuator with F female RF connectors. It covers the frequency range 5-2150MHz with an attenuation range of 0-63dB with 1dB steps. The 75P-193 is offered as a component or can be integrated into a remotely controlled (Ethernet/RS-232) attenuator assembly. Please email our engineering department your requirements and we will work with you to find a model for your exact RF testing needs.
