You are here: Home1 / Shop2 / Test Systems3 / Attenuator Assemblies4 / 19 Inch Rack Attenuator Assemblies (50 Ohm)5 / Assembly with 1-8 Attenuators 0.1-18 GHz | 0-63dB x 0.5dB | 50PA-1157-...

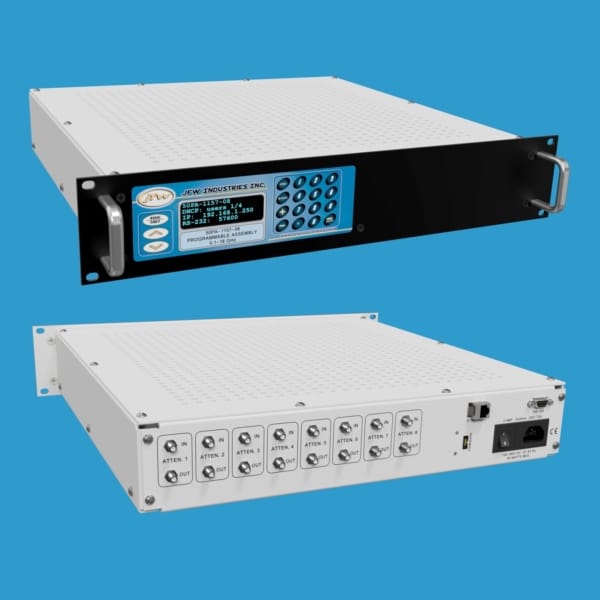

JFW model 50PA-1157-08 SMA eight channel attenuator assembly with Ethernet remote control

Assembly with 1-8 Attenuators 0.1-18 GHz | 0-63dB x 0.5dB | 50PA-1157-XX

JFW Model #: 50PA-1157-XX
Impedance: 50 Ohms
Configuration: Available with 1 to 8 attenuators
Attenuation Type: Solid-State step attenuators
dB Total: 63 dB
dB Step: 0.5 dB
Frequency Start: 100 MHz
Frequency Stop: 18 GHz
Manual Control: Display and Keypad
Remote Control: Ethernet and RS-232
RF Connectors: SMA Female
Enclosure Type: 19 inch rack mount
Documentation: Data Sheet | Drawing

Clear
Categories: 19 Inch Rack Attenuator Assemblies (50 Ohm), Attenuator Assemblies, Test Systems
  • Description
  • Additional information

Description

Model 50PA-1157-XX is a 19 inch rack mount attenuator assembly containing 50 Ohm solid-state step attenuators.  The number of attenuators can be selected from 1 to 8 attenuators.  The attenuators have an attenuation range of 0 to 63dB by 0.5dB steps and operate at 100 MHz to 18 GHz.  The attenuator is bi-directional, but is labeled with “input” and “output” because each port has a different maximum power rating.   The port labeled “input” is rated for +24 dBm.  The port labeled “output” is rated for +15 dBm.  The attenuators can be controlled manually or remotely.  This model is available with SMA female 50 Ohm coaxial RF connectors.

Example Model Numbers
50PA-1157-01 SMA (1 attenuator with SMA female)
50PA-1157-02 SMA (2 attenuators with SMA female)
50PA-1157-04 SMA (4 attenuators with SMA female)
50PA-1157-08 SMA (8 attenuators with SMA female)

Manual Attenuator Control
The manual control menu allows you to set/read an attenuator, fade an attenuator, or perform a handover using two attenuators.

Remote Attenuator Control
This attenuator assembly can be remotely controlled via an Ethernet connection or a serial connection (i.e. RS-232).  The network settings can be changed manually with the keypad or remotely using the NET remote command.  The network interface can be set to either DHCP mode or Fixed Address mode.  All new test systems are shipped from the factory in DHCP mode.  A RS-232 connection to the test system is made using a null modem type serial cable.  Baud rates up to 155200 baud are available.  The baud rate can be changed manually with the keypad or remotely with the SERIAL remote command.

Additional information

Connector Type

SMA Female

Number of Attenuators

1, 2, 3, 4, 5, 6, 7, 8
