75 Ohm Electro-Mechanical RF Switches

JFW’s online 75 Ohm electro-mechanical RF switch models are listed in the table below. The RF switch specifications are sortable for easy model selection.

If you can’t find a standard 75 Ohm electro-mechanical RF switch model to meet your requirements, please contact JFW at sales@jfwindustries.com. With our extensive line of solid-state and electro-mechanical RF switch models, JFW has solutions to fit your specific coaxial RF switch applications.

Whether you are performing benchtop testing or computer automated testing, JFW’s electro-mechanical RF switches have the proven reliability needed for your RF and microwave testing.

Frequently Asked Questions

Click the column headers to sort our online models. For your specific application, please contact JFW for assistance or use our Inquiry Form.

JFW Model #ImpedanceSwitch ConfigSwitch TypeFrequency StartFrequency StopSwitching SpeedRF Input PowerIsolationControl

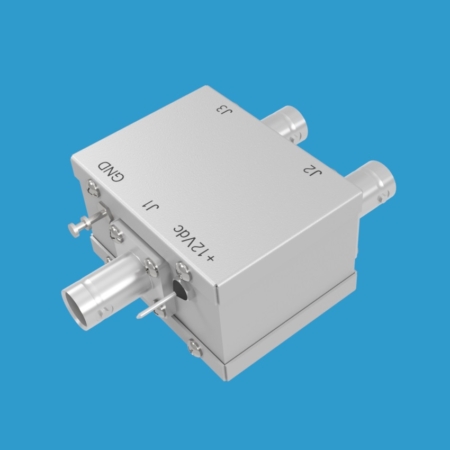

75S-07275 Ohms1P2TFailsafe, Absorptive0 MHz (DC)1450 MHz10 mS+20 dBm50 dB+5, +12, +24, +28 Vdc

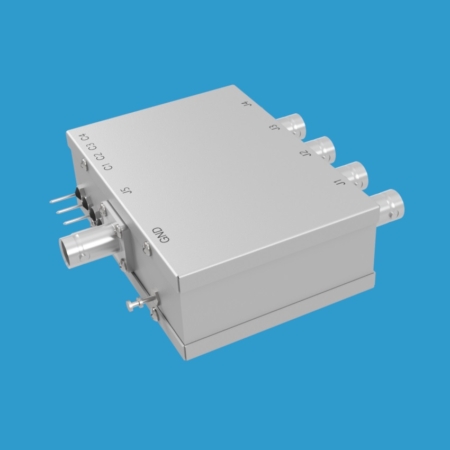

75S-07375 Ohms1P4TNormally Open, Aborptive0 MHz (DC)1450 MHz10 mS+20 dBm50 dB+12 Vdc
75S-08775 Ohms1P3TNormally Open, Aborptive0 MHz (DC)1450 MHz10 mS+20 dBm50 dB+12 Vdc
75S-11175 Ohms1P2TFailsafe, Absorptive0 MHz (DC)2150 MHz10 mS+20 dBm50 dB+12 Vdc

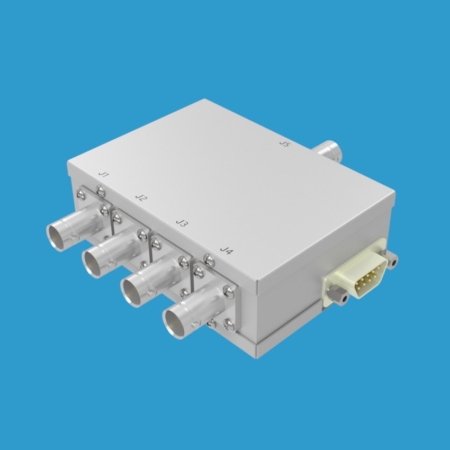

75S-20875 Ohms1P4TNormally Open, Aborptive0 MHz (DC)1450 MHz10 mS+20 dBm50 dBTTL
75S-21475 Ohms1P8TFailsafe, Absorptive0 MHz (DC)1000 MHz10 mS+20 dBm60 dBTTL
75S-22175 Ohms1P8TFailsafe, Absorptive0 MHz (DC)2150 MHz10 mS+20 dBm60 dB+12 Vdc

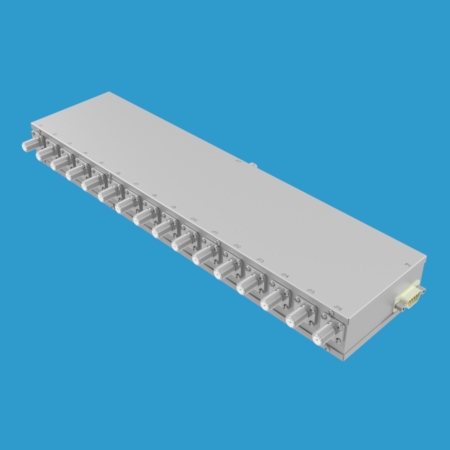

75S-24375 Ohms1P16TFailsafe, Absorptive0 MHz (DC)1000 MHz10 mS+20 dBm60 dB+12 Vdc
75S-25775 Ohms1P12TFailsafe, Absorptive0 MHz (DC)1000 MHz10 mS+20 dBm60 dBTTL

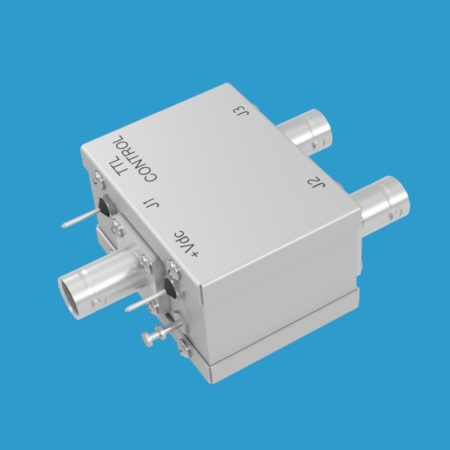

75S-26775 Ohms1P2TFailsafe, Absorptive0 MHz (DC)1450 MHz10 mS+20 dBm50 dBTTL

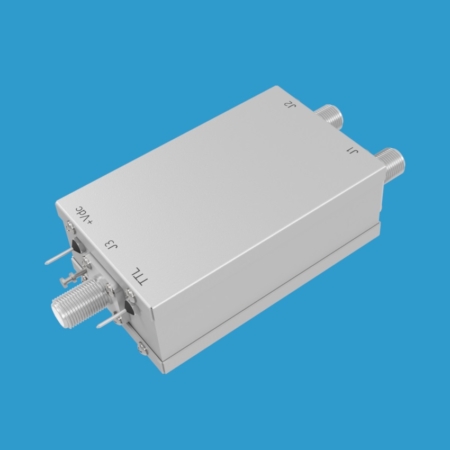

75S-28475 Ohms1P2TFailsafe, Absorptive0 MHz (DC)2000 MHz10 mS+20 dBm80 dBTTL

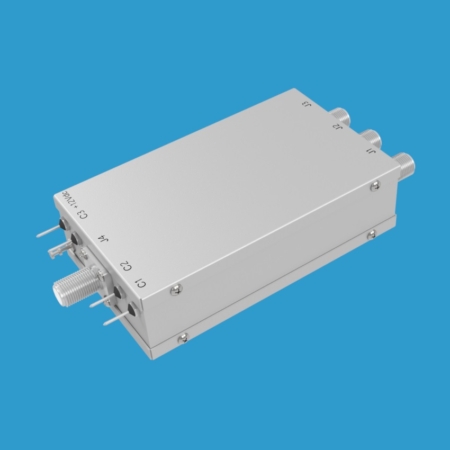

75S-28575 Ohms1P3TNormally Open, Aborptive0 MHz (DC)2000 MHz10 mS+20 dBm80 dBTTL
75S-29575 Ohms1P4TNormally Open, Aborptive0 MHz (DC)2000 MHz10 mS+20 dBm80 dBTTL
75S-30375 Ohms1P16TFailsafe, Absorptive0 MHz (DC)2150 MHz10 mS+27 dBm70 dBTTL
75S-30675 Ohms1P4TNormally Open, Aborptive0 MHz (DC)2150 MHz10 mS+20 dBm70 dB+12 Vdc

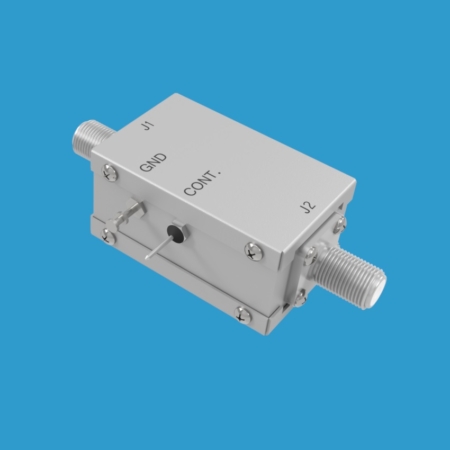

75S-34875 Ohms1P1TNormally Open, Aborptive0 MHz (DC)2150 MHz10 mS+20 dBm60 dB+12 Vdc

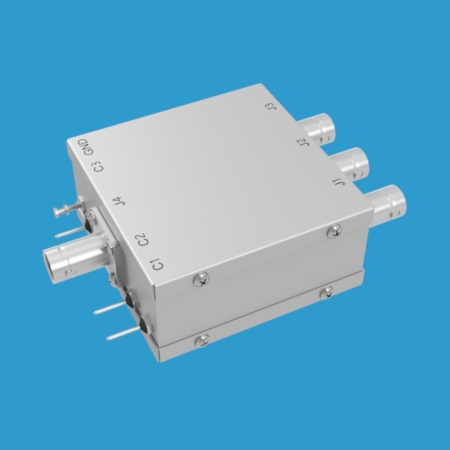

75S-11875 Ohms1P3TNormally Open, Aborptive0 MHz (DC)2150 MHz10 mS+20 dBm60 dB+12 Vdc
75S-38175 Ohms1P6TNormally Open, Aborptive0 MHz (DC)2150 MHz10 mS+20 dBm55 dB+12 Vdc

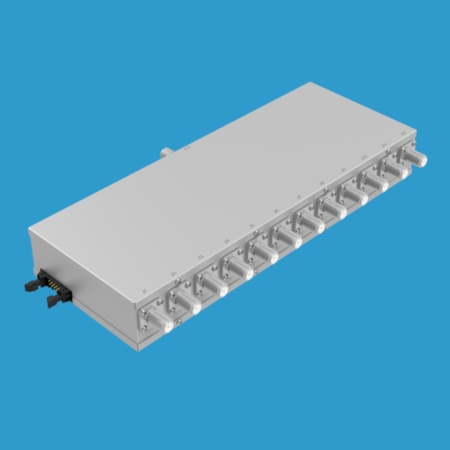

75S-38275 Ohms1P12TFailsafe, Absorptive0 MHz (DC)2150 MHz10 mS+27 dBm50 dB+12 Vdc

The 75 Ohm electro-mechanical RF switch models listed in the table are only our online models. JFW has over 300 different models of 75 Ohm RF switches. If you can’t find a model in the table that fits your exact 75 Ohm electro-mechanical RF switch requirement, please contact JFW. We do not charge NRE’s for new 75 Ohm RF switch models. We pride ourselves in the ability to offer custom 75 Ohm RF switch models with the same pricing and delivery as our catalog 75 Ohm RF switch models. Send in a request with a list of your required RF specifications and JFW will design a 75 Ohm electro-mechanical RF switch model that meets your specific requirements.

Common Electro-mechanical RF switch terminology…

Normally Open: With no power applied, the common port is not connected to any of the output ports. N.O. Common abbreviation for Normally Open.

Failsafe: With no power applied, the common port is connected to one of the output ports.

Reflective: Switch ports are high impedance (open) when ports are turned off.

Absorptive: Ports that are turned off are internally terminated with the proper impedance. (i.e. 75 Ohm impedance models are internally terminated with 75 Ohms.)

Self-terminating: This term is used interchangeably with “absorptive”. Ports that are turned off are internally terminated with the proper impedance.
(i.e. 75 Ohm impedance models are internally terminated with 75 Ohms.)

Hot Switching: The switch changes state while a RF signal is still being applied to the switch.

Cold Switching: No RF signal is applied to the RF switch while the RF switch is changes states.

Switching Speed: Port turning ON = 50% TTL control to 90% of the RF signal. Port turning OFF = 50% TTL control to 10% of the RF signal.

Rise Time: Port turning ON = 10% of the RF signal to 90% of the RF signal.

Fall Time: Port turning OFF = 90% of the RF signal to 10% of the RF signal.
